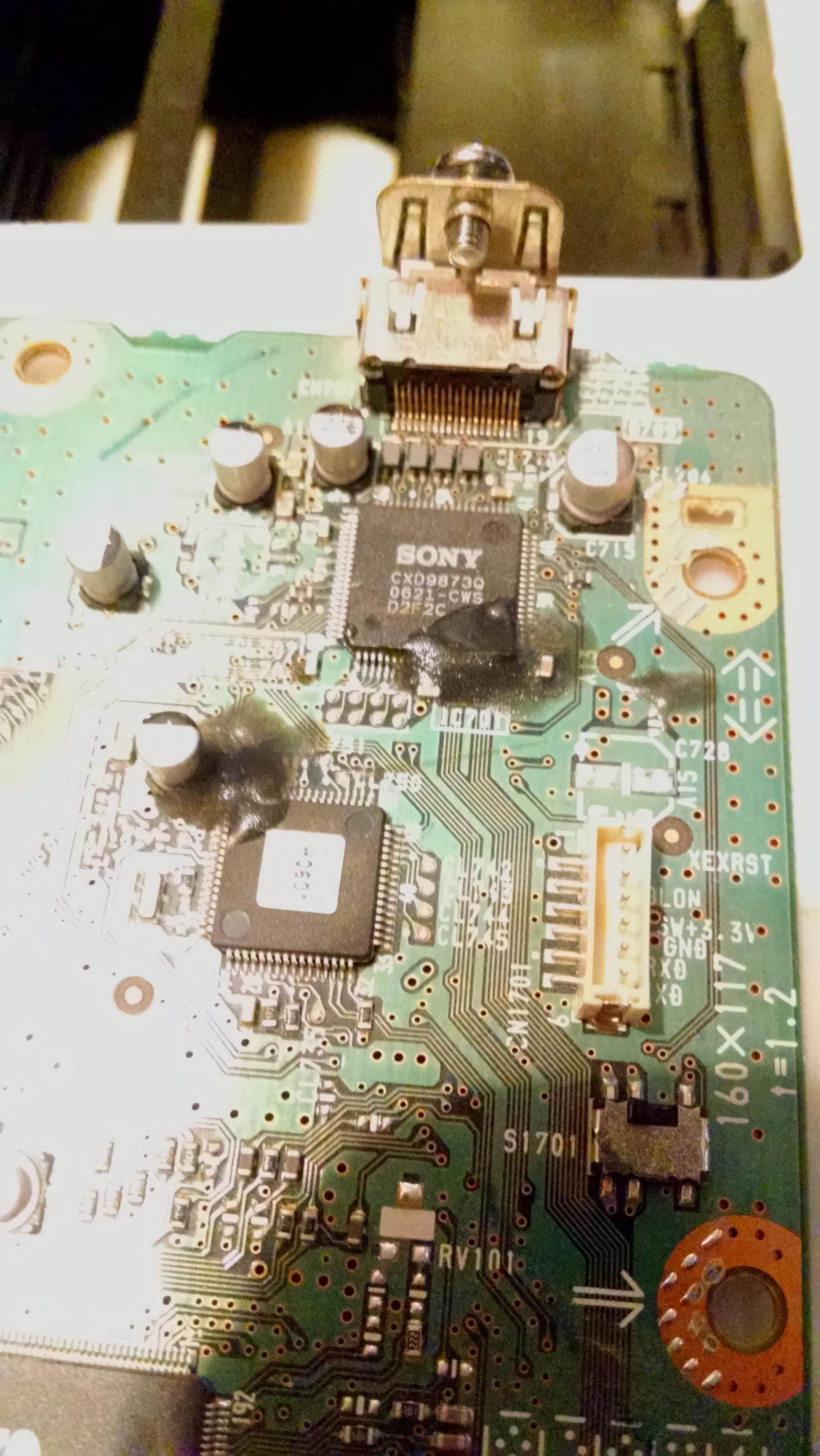

I have this board I pulled out of a home theater. I has some black goo on it anyone know what this is? Image is attached.
Attached Files
-
Hi, this is my personal laptop, which the original board (lets call it Board A) blew up PU8700 (TPS51486), making a hole on the board, i had left the laptop at my desk one day with the battery fully charged and didn't touch it for a week, but when i tried to turn it on it didn't
Thought the battery was dead, so i plugged in the charger then tried to power on, the power LED blinked once, charged LED still orange, unplugged the charger, plugged in again and I noticed the "magic smoke" smell, so i unplugged the charger, removed the back cover and saw the blown IC (the "magic... -
Hey guys great forum glad to have found it. I bought a Sony XBR 65X900C cheaply because it didn't work. No signs of life at all not even a light/led. All I hear is a brief high voltage sound when I throw the power to it.
Didn't see any obvious signs of damage so right away started checking voltages. This is what I see:
Power Board Connector that goes to Main board
CN6401
Pin 01 NC
Pin 02 NC
Pin 03 "BL_ON": 0V
Pin 04 "N/C"
Pin 05 "STBY 3.3V": 3.5V
Pin 06 "GND": N/C
Pin 07 "AC_OFF"... -
I have problem with my AVR(Marantz SR4003) HDMI board issue. I connect to my TV but screen color distorted,see attached picture.
Connection as below:
Set-top box HDMI output >AVR 3 HDMI input/one HDMI output>HDTV HDMI port
If I bypassed AVR then HDTV screen color be good.
I take out HDMI board from AVR and check services manual the schematic shown the HDMI signals path:
3 HDMI input port > SIL9185 chip(HDMI switch) > SIL9033 chip(HDMI receiver) > SIL9030 chip(HDMI transmitter) > HDMI output port
I replaced all... -
All left and right refers to looking from rear of TV (or looking from front with TV upside down)- TV came with vertical bars and no image. Found faulty TVS on left buffer board. Also replaced T-Con (may have damaged the original while hot air removing components, board has slight warp) and have full image but few horizontal lines on the screen. Some of the lines appears to be 2 pixel tall while others are 1 pixel tall.
- Disconnecting left and right buffer board potentially reveals problems on both sides with different signals (unless this T-Con require jumper like Samsung FB_TRDY1&3) Fault
-
Hi everyone, newcomer in this forum, i watched tons of video from Sorin, i like the way i calmly explain things, i did quite some console repair, i am not that bad at micro-soldering, but troubleshooting where the issue is, is definitely where i still have progress to make. Usually i was able to fix the console because the failure was obvious, or because i was able to find someone with similar measures on the board and was pinpointing what to replace that way.
Nevertheless, let's say, i don't come as a total beginner.
I have this old laptop, which suit perfectly my needs, with the...
