Re: LG 42lc7d low standy voltage
Should it show O.L at all times? It starts at O.L then goes to 40 and drains down.
Should it show O.L at all times? It starts at O.L then goes to 40 and drains down.
-
-
Re: LG 42lc7d low standy voltage
It should start at low Ohms reading and as the cap is charged up by the meter then the resistance should rise to O.L.
If the leakage resistance is that bad then the capacitance will not be correct either, but you are getting correct capacitance reading so may be it is an error in your resistance reading.Last edited by budm; 03-09-2015, 02:21 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: LG 42lc7d low standy voltage
Yes, it charges up to 40 then OLComment
-
Re: LG 42lc7d low standy voltage
OK, that is fine, I thought it ends up at 40 Ohms after charged by the meter.
So what P/N did you get on the PFC Controller IC?
5501 is all you can read on top? You may have to clean off the flux on top may be?
No 'F' symbol?
https://cdn.badcaps-static.com/pdfs/...309e1a01b8.pdf
FA5501 is what I think.
Last edited by budm; 03-09-2015, 02:43 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: LG 42lc7d low standy voltage
it is 5501a
207D45
I suppose there could be a F but I sure dont see it, ive cleaned it with alchol and heat it up to remove the flux.Last edited by topfli8979; 03-09-2015, 03:11 PM.Comment
-
Re: LG 42lc7d low standy voltage
Encompass parts shows the replacement to be, LG 0IMCRFE001A
https://www.encompassparts.com/model.../42LC7D/42LC7D
search u600Last edited by topfli8979; 03-09-2015, 03:24 PM.Comment
-
Re: LG 42lc7d low standy voltage
Tv fixed! Replaced inverter transformer, tv works perfect. Thanks guys!
Attached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: LG 42lc7d low standy voltage
Good news, I am still curious about the DCV on the main filter cap, we were getting only 340VDC, so what do you get now? And what is the resistance reading of the bad inverter transformer?Last edited by budm; 03-25-2015, 04:47 PM.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
Re: LG 42lc7d low standy voltage

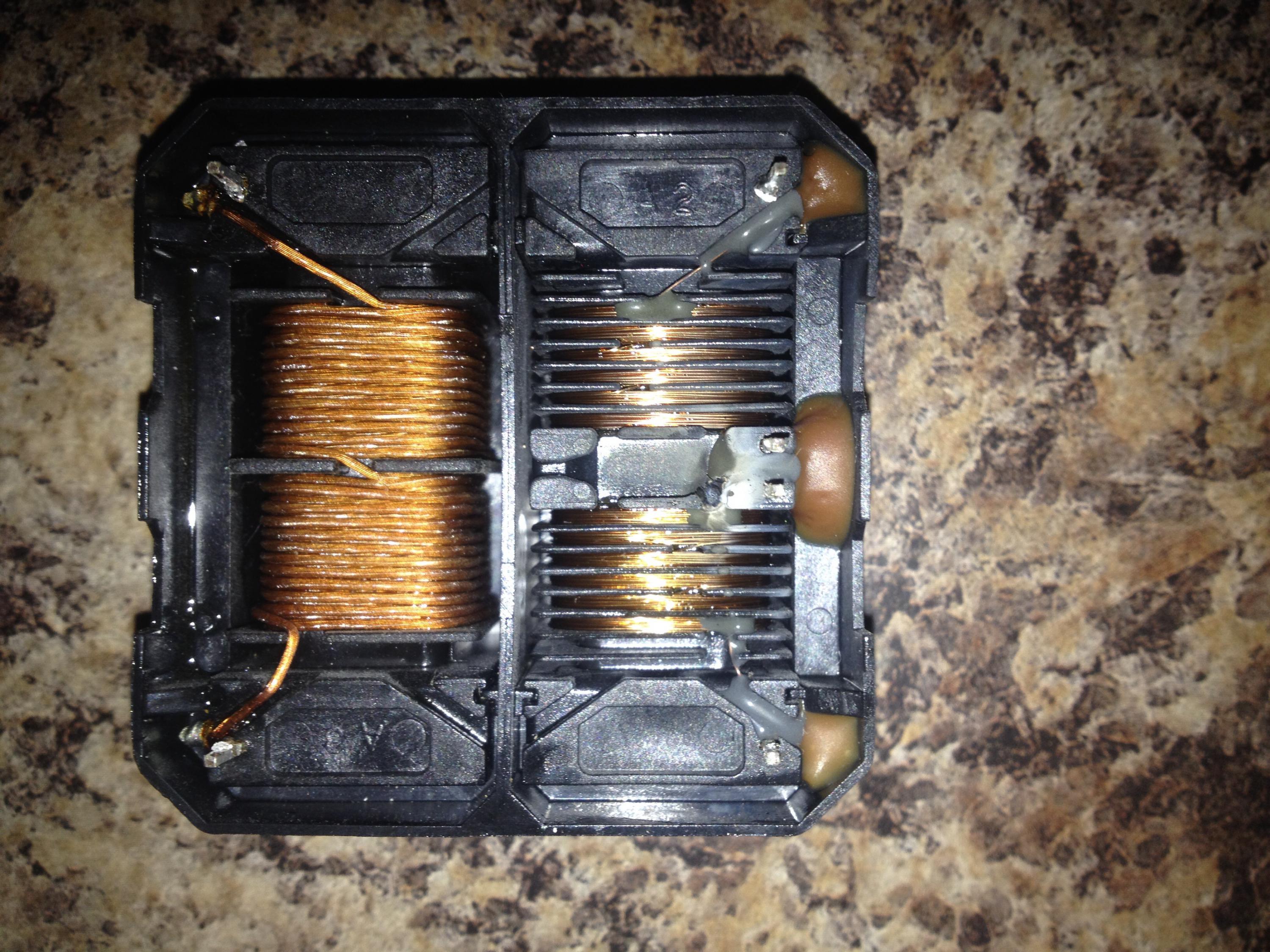

Its still low, came up to 348v, tv seems to work great though. Going to leave it on for awhile to make sure all is good. One side of the transformer is 26 ohm the other gets no reading. I can see the windings are burnt on the no reading side.Comment
-
Re: LG 42lc7d low standy voltage
Yes, that seems low, so keep an eye on it then.Never stop learning
Basic LCD TV and Monitor troubleshooting guides.
http://www.badcaps.net/forum/showthr...956#post305956
Voltage Regulator (LDO) testing:
http://www.badcaps.net/forum/showthr...999#post300999
Inverter testing using old CFL:
http://www.badcaps.net/forum/showthr...er+testing+cfl
Tear down pictures : Hit the ">" Show Albums and stories" on the left side
http://s807.photobucket.com/user/budm/library/
TV Factory reset codes listing:
http://www.badcaps.net/forum/showthread.php?t=24809Comment
-
This is my first attempt at troubleshooting a board like this, I know I could just buy a new board but I'm curious to figure out how this works. I've been testing different components in the evenings this week and I think the problem is with the IC failing to start up for some reason. When the board is plugged in there is no standby voltage.
Then today it randomly sprung to life like a zombie but shortly died thereafter. I have no idea why it would have done that and its the first time I've seen it running. I discharged capacitors on the board last night, then it was sitting today.... -
I have no standby indicator light and no light on the optical port. I checked the standby voltage on the two mosfets in the top left and they both read 30mV. I checked the fuse and it has continuity. I also checked the voltage on the two large 450v caps they both read 153v. All of these voltages are the same with and without the main board connected as well as with backlights connected/disconnected.
Nothing looks obvious like a burned ceramic disc cap or bulged electrolytic. No burned resistors, diodes, or anything like that.... -
Hello,
I have a problem with this TV, the standby voltage is not present. I have checked the components around the IC fsq510's area and they seem to work, also replaced this IC but the problem persists.
These are the voltages in some pins of IC fsq510:
Vcc=18v
D=320v
Vstr=154v
Unfortunately, I couldn't find the schematic
What else could I check?
Is it possible to provide standby voltage from an external source to allow the TV to turn on?
Thank you... -
An Asus GL503GE laptop arrived that had had a screw dropped on the motherboard while the battery was connected. This resulted in a physical damage to the 3.3v / 5v voltage controller RT6575DGQW (pu28 on schematic, page 40). Additionally, the trace to pin 12 (VIN 19v supply) was burnt.
Replaced the RT6575DGQW with a new one, repaired the damaged trace. Only getting 0.7V instead of the expected 3.3v standby voltage (3V_S5 on schematic).
Replaced the AON7408 PQ60 mosfet from a donor board as resistance was low on the gate (I did not write this value down, as I optimistically... -
Hi all,
i need your help for understanding if there is an issue around my bios on edm-033 and around southbridge pin P16 and P17.
I have removed my Southbridge and when I check standby voltage on the bios, I’ve got this value:- pin 1: 0,16v
- Pin 8: 3,3v
- Pin 7: 3,3v
I think there is an issue between 3,3v line and cs pin, but I don’t know where.
then this are the values on SB P17 and P16: 0,93v, But I have 3,3v on L17.
Thanks for your help....10-14-2025, 02:03 PM
