Another vw42l problem

[budm]

Re: Another vw42l problem

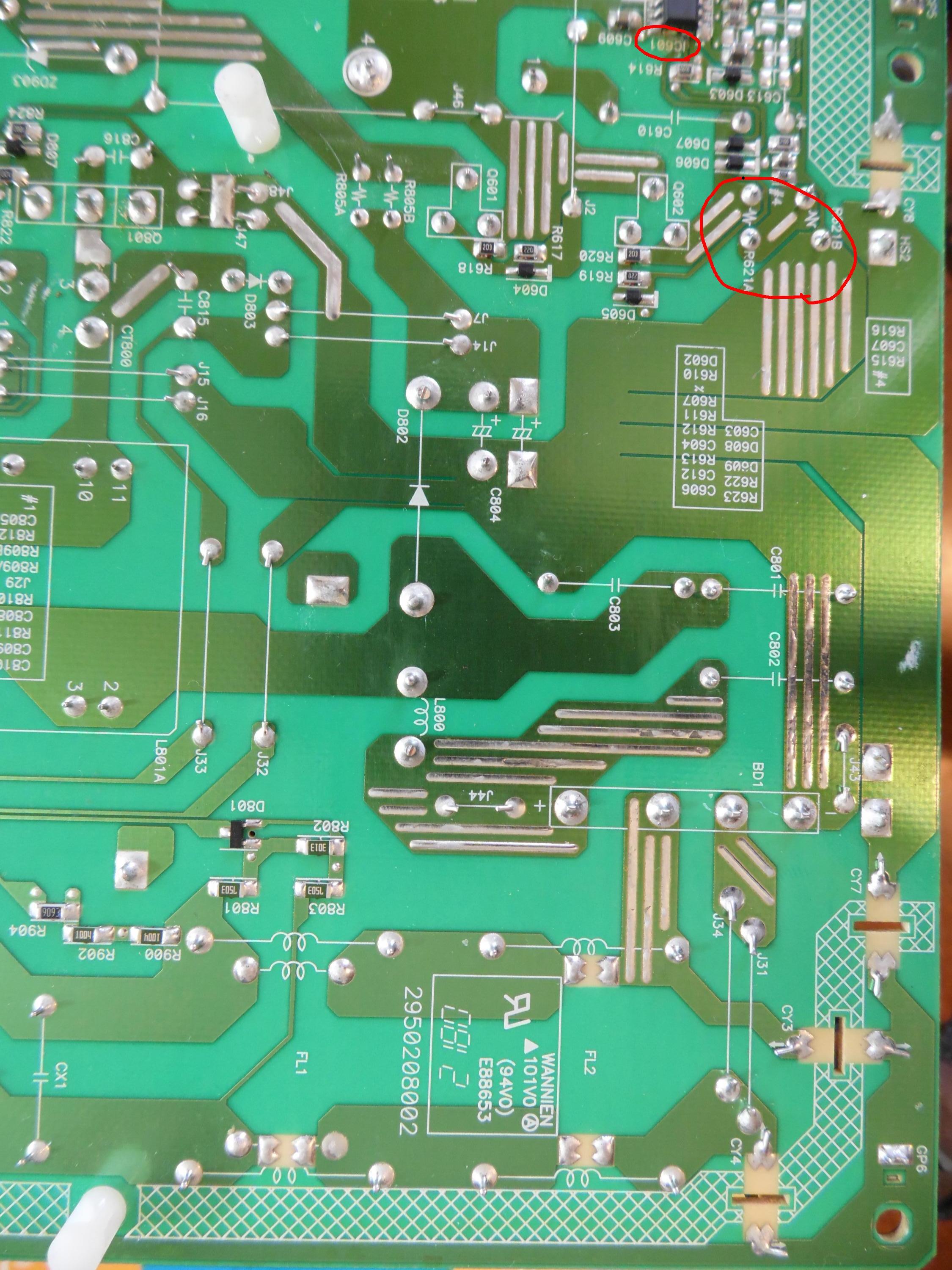

OK, please chek the resistance of the Source resistors R621A, R621B. They should be leass than 1 Ohm (use 200 Ohm scale).
Please also get the P/N as printed on the SMPS IC601 so we can get the spec sheet to figure out the function of each pin.

[abarker8323]

Re: Another vw42l problem

R621A 0.1 ohms
R621B 0.1 ohms

P/N IC601

DLA001D
DEI (04) 928W807


Those are very hard to see but i think i have them correct.
The (04), Is inside a circle, not parenthesis

when you find the spec sheet can you send me the link so i can see it? maybe i can learn something. went to alldata but dont know what i am looking for or what numbers to put in.

[budm]

Re: Another vw42l problem

This is what I found on the DLA001D.

[abarker8323]

Re: Another vw42l problem

ok, This is a complex little booger. How are we going to start testing this thing?

[abarker8323]

Re: Another vw42l problem

So assuming i have the numbers in their respective places on the circuit. Black lead to chassis ground.

1 Css 0.0
2 Rfstart 0.0
3 Cf 0.0
4 Rfmin 0.0
5 OPOUT bounces between 9-13mv
6 OPIN- 2.48vdc
7 OPIN+ 0.5vdc
8 EN1 0.0
9 EN2 0.0
10 GND 0.0
11 LVG 0.0
12 Vs 13.09vdc
13 N.C. 0.0
14 OUT Starts at 200mv and decreases
15 HVG Starts at 370mv and decreases
16 VBOOT 10.2vdc

[abarker8323]

Re: Another vw42l problem

what do you think about this?

[budm]

Re: Another vw42l problem

It is getting enough B+ at pin 12 (Vs) for it to run or at least start up, I do not remember if you put the volt meter at the 24V output to see if it even jumps up for seconds or not. If not, this IC may be dead since i expect it to try to fire up the circuits and then goes into shutdown due to some fault condition.

[abarker8323]

Re: Another vw42l problem

which pin should i look for it to jump up on?

[budm]

Re: Another vw42l problem

Look at the 24V pin which should go the inverter board.

[abarker8323]

Re: Another vw42l problem

Immediately upon turning the power on, the 24v pin it goes to -60mv and goes down and hangs out about 20. The 12volt pin going to main goes to 2.12vdc immediately and then starts going down quickly.

[abarker8323]

Re: Another vw42l problem

If you think this board is bad can you help me find the right ic to order from digikey?

[abarker8323]

Re: Another vw42l problem

http://www.digikey.com/product-detai...9-1-ND/2218834

Is this the correct IC?

[budm]

Re: Another vw42l problem

The IC is L6598 (DLA001D), the one on the Digikey link is L6566.
It does sound like it did try to start up. Do you have small 12v lamp to connect it to the 12v output to see if it will light up for seconds?

IC:
http://www.aliexpress.com/store/prod...473438412.html
I would order 2 in case you mess up during soldering works.

[abarker8323]

Re: Another vw42l problem

http://www.digikey.com/product-detai...20-1-ND/715964
This one?

[abarker8323]

Re: Another vw42l problem

I did have a 1157 bulb. It would not come on when the set was turned on

For some reason when i touched the lead to the ps_on there was a blue led that came on the t-conn.? It went off when i took it off. Hope i didnt mess anything up. When i was reading the 12v pin for it read 2.12 for not even half a second.

[budm]

Re: Another vw42l problem

OK, that last one from Digikey is the correct one.
What you should also do is to record the resistance reading of all the pins against the Ground pin (pin 10) before removing the old one, then take the reading when the new one is install just in case some of the pin may get solder bridge.

[abarker8323]

Re: Another vw42l problem

Good deal.Thanks Bud!! I have got two ordered from digikey. I think i will do ok getting the old one off it doesnt appear like it will take alot of heat. I will post a picture after i get the new one on.

[budm]

Re: Another vw42l problem

I hope it is the IC.

[abarker8323]

Re: Another vw42l problem

Ah, if it aint it will be one down and good practice for my soldering skills

[abarker8323]

Re: Another vw42l problem

So bud, I replaced the ic. Still nothing, exact same thing. so I bought a power supply. Now there is clicking on the power supply and a buzz. Then there is a click on the inverter board. blue led on the tconn. Then shortly there after it all just stops. No buzz or light. Power supply made heat quickly i thought. 24V shoots up to 3.5 Volts and then goes away
