Power supply build quality pictorial. part 2

Collapse
This is a sticky topic.
X
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Re: Power supply build quality pictorial. part 2

    they've been using taicon and ltec for a while now in budget PSUs..
    they seem to hold up fairly well..

    Comment


      Re: Power supply build quality pictorial. part 2

      well, if your cooling is good and it is efficient (low heat)... then who knows, maybe you can make crap perform well... delta is good at that...
      sigpic

      (Insert witty quote here)

      Comment


        Re: Power supply build quality pictorial. part 2

        Not so much that crap can't perform, it just can't for too long.

        Stuff like fuhjyuu/asia-x, YC, JEE, Hermei, CS, etc... can provide excellent ripple suppression so long as the rest of the power supply is designed well.

        Though i've always wondered if some taicon series are just nichicons (or vice versa) such as taicon pw and nichicon pw.

        Comment


          Re: Power supply build quality pictorial. part 2

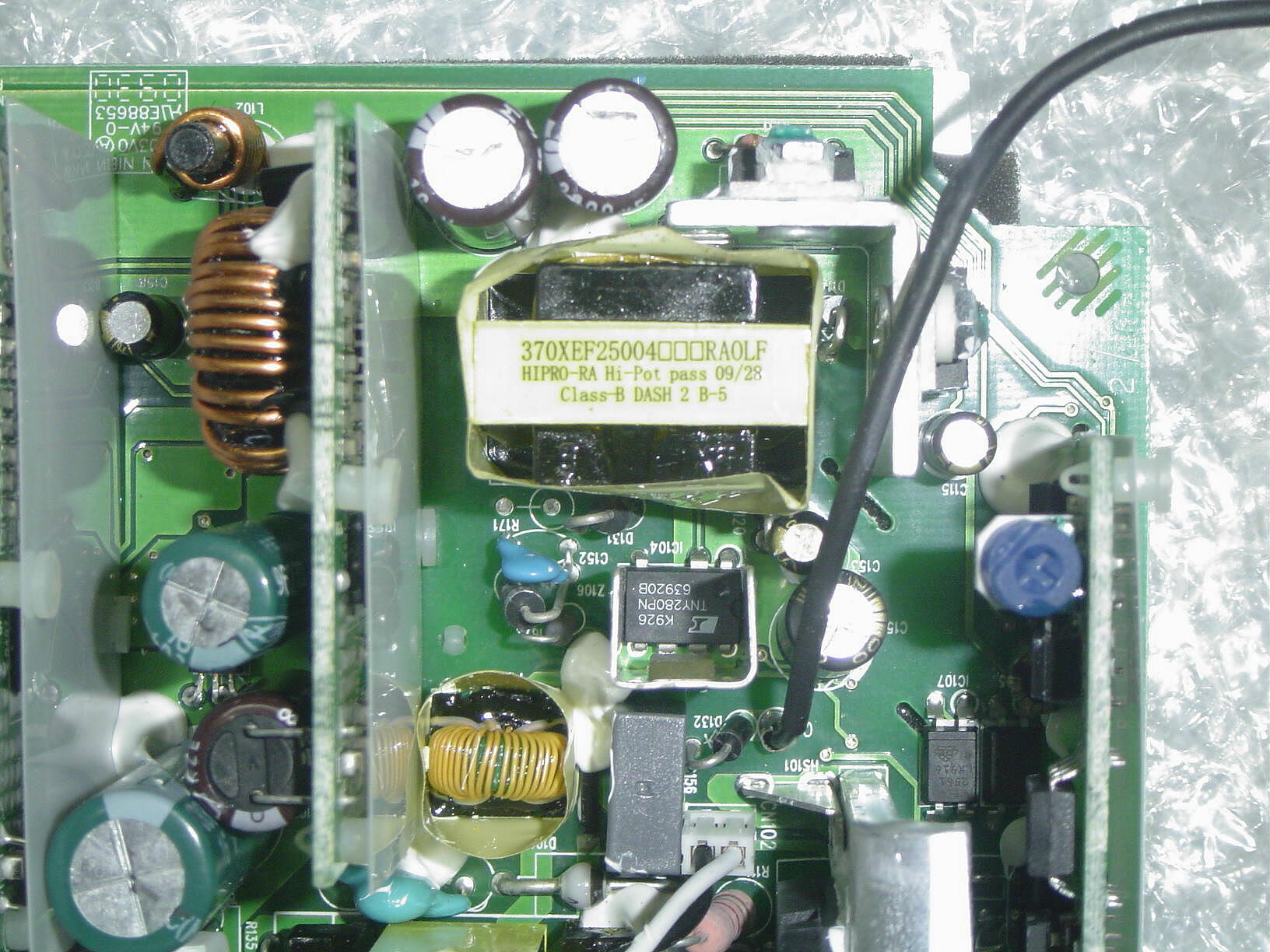

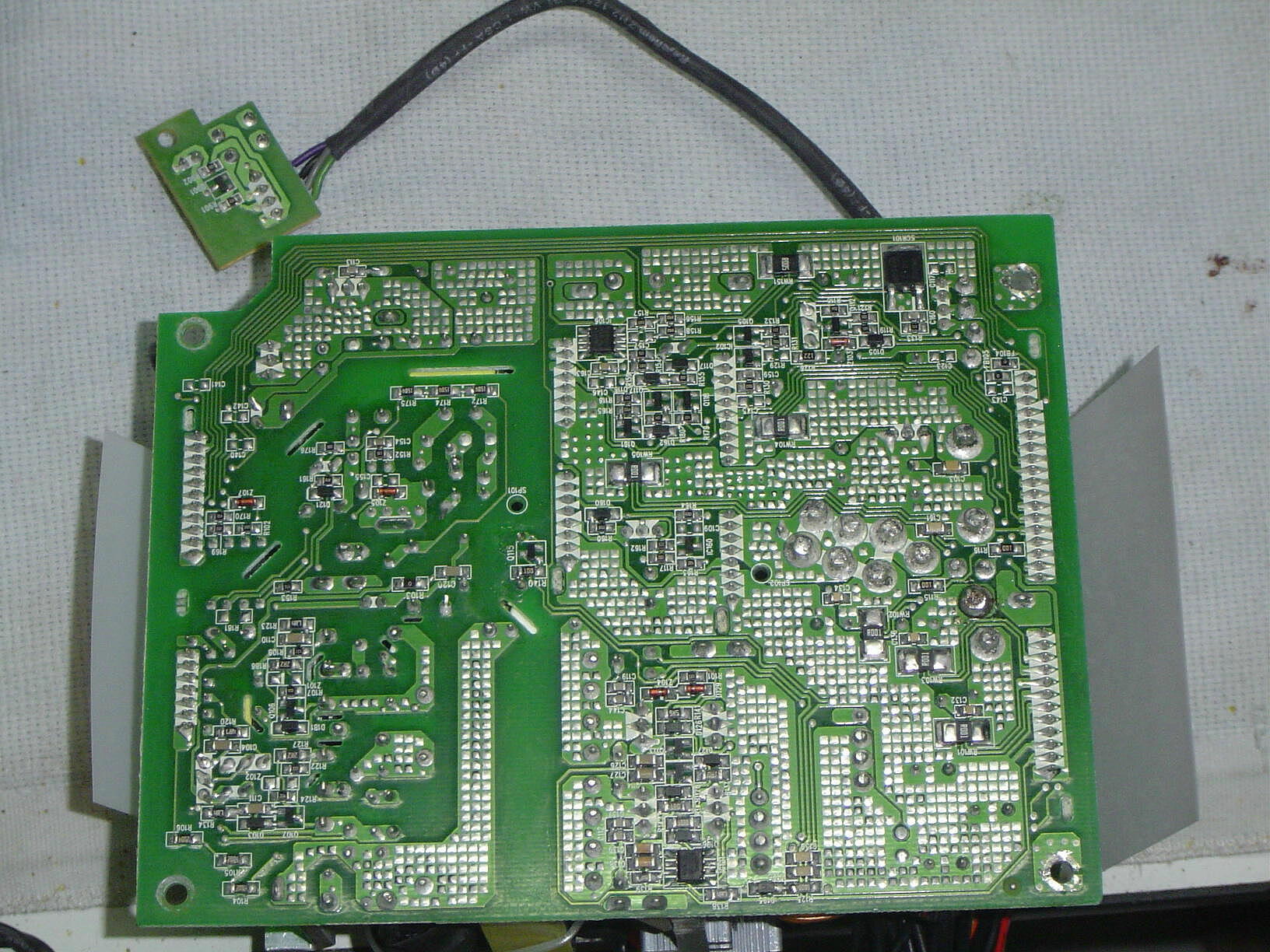

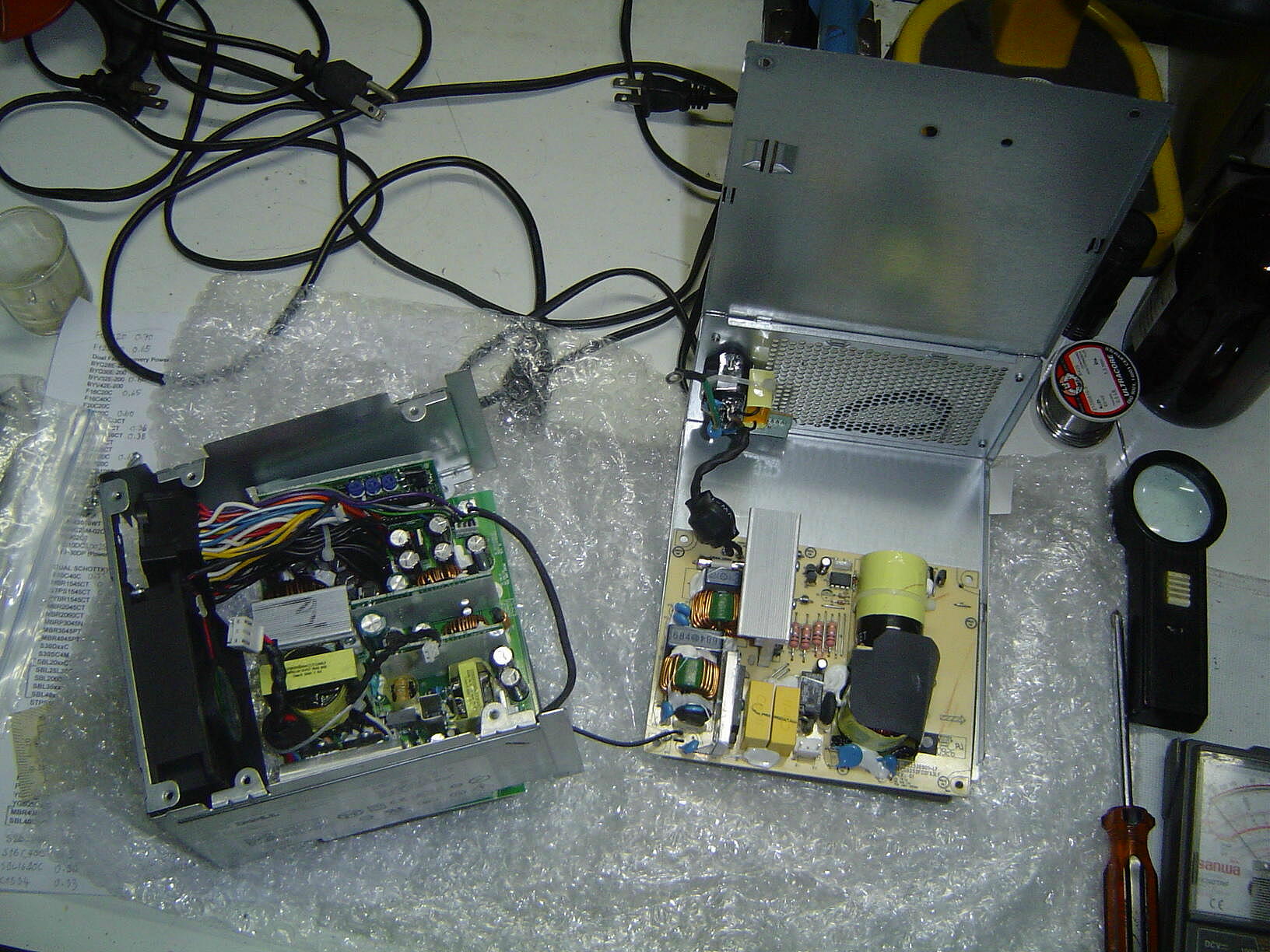

          I've just found bad TAICON PJ 47/25V failed without any signs in 5VSB circuit of the Delta DPS-300KB-1A.
          It made the Delta unit act as MOBO killer like Bestec ATX-250-12E. the 5VSB was output 12V.

          I replaced with ELNA RJF 100/50V, 5VSB is good for now.
          Attached Files

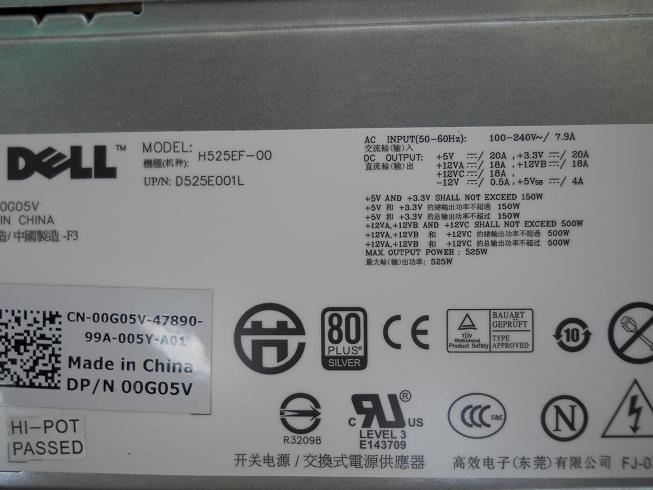

          | AMD Phenom II X2 550BE | GIGABYTE GA-MA790FXT-UD5P | GeIL DDR3 Ultra 2x2GB 1600C7 |
          | XFX GTS250 DDR3 512MB | Dell H525EF-00 | Lancool PC-K62 Black | Samsung 2232GW |
          | 2xWD7500AYYS | 2xHD322GJ Raid0 |

          Comment


            Re: Power supply build quality pictorial. part 2

            Originally posted by POM_MJ
            I've just found bad TAICON PJ 47/25V failed without any signs in 5VSB circuit of the Delta DPS-300KB-1A.
            It made the Delta unit act as MOBO killer like Bestec ATX-250-12E. the 5VSB was output 12V.

            I replaced with ELNA RJF 100/50V, 5VSB is good for now.
            i doubt we all saw that coming... uh oh... better monitor the 5vsb on those taicon'd deltas...

            who would have thought that delta=bestec?
            sigpic

            (Insert witty quote here)

            Comment


              Re: Power supply build quality pictorial. part 2

              No surprise as the dps-300kb is a pretty aged unit now. It's still an awesome performing unit otherwise with super tight voltage regulation and low ripple. I don't have mine anymore and it was so crammed full I couldn't tell if it uses a 2 transistor 5vsb, but it probably does. As long as the psu doesn't use the two transistor circuit to generate the 5vsb there is no need to really monitor it.
              Last edited by 370forlife; 07-10-2010, 10:28 PM.

              Comment


                Re: Power supply build quality pictorial. part 2

                Premier LC-B300ATX

                - missing or tiny input filter components...

                - 4 diodes in place of a bridge rectifier

                - 2x330uF input caps

                - 2xC2335 7A continuous / 15A pulsed

                - EL33 transformer

                - missing coils/caps at output filter

                - 2 diodes for 12V

                - 1x S10C40 for 3.3V

                - 1x S10C40 for 5V


                What a POS!!!!
                Attached Files

                Comment


                  Re: Power supply build quality pictorial. part 2

                  2 10A's for the 5v and 3.3v and 6A for the 12v? WHA? I like the PI filter in place of the choke for the 3.3v.

                  Comment


                    Re: Power supply build quality pictorial. part 2

                    that psu is epic fail... i have seen worse, but that doesn't make it not suck... lamest i have seen since the echo star with the dummy weights...
                    sigpic

                    (Insert witty quote here)

                    Comment


                      Re: Power supply build quality pictorial. part 2

                      Originally posted by 370forlife
                      I like the PI filter in place of the choke for the 3.3v.
                      I have never seen such a thing in a psu before...

                      Comment


                        Re: Power supply build quality pictorial. part 2

                        Originally posted by goodpsusearch
                        I have never seen such a thing in a psu before...

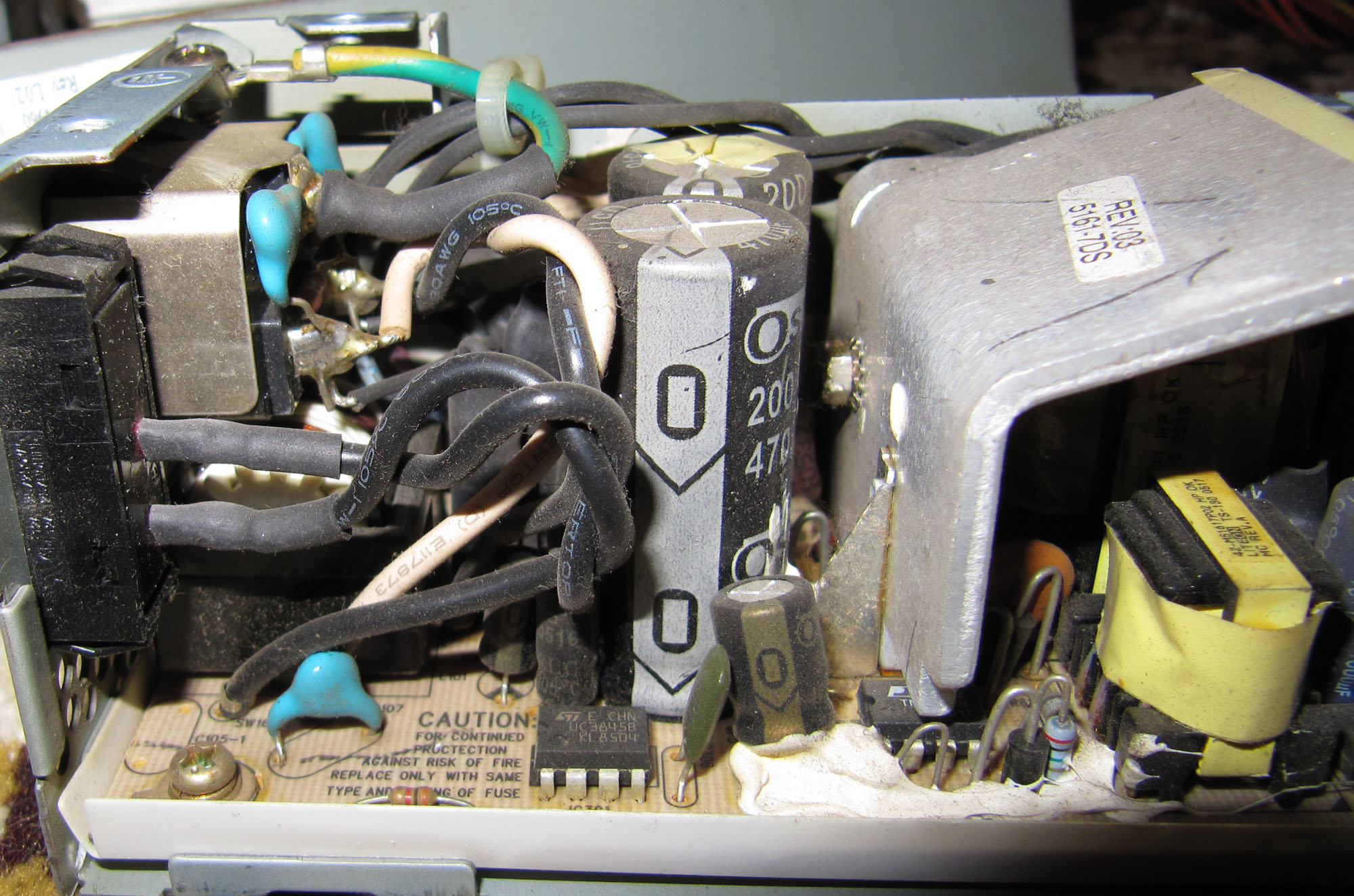

                        I have - in a slightly older L&C PSU (same company that makes Deer, Allied, Premier, and a few other PSUs by various names). Surprisingly though, it lasted quite a while - 7 years (still works, but I took it out for a better PSU). Had the two diode treatment for the 12v rail as well. Original caps are a mix of Jun Fu, CapXon, and JEE - all still good.
                        I also have another L&C that has the same exact PCB design as the Premier. Although it's built better, it's still crap. One day the wires started smoking on it and burned. Apparently something overloaded, though I never figured what. Plugged in the PSU the next day, and it worked. Needless to say, I didn't and never will use it in a computer again.
                        ...
                        I should probably upload my entire L&C/Deer collection some day.

                        Comment


                          Re: Power supply build quality pictorial. part 2

                          Originally posted by momaka
                          I have - in a slightly older L&C PSU (same company that makes Deer, Allied, Premier, and a few other PSUs by various names). Surprisingly though, it lasted quite a while - 7 years (still works, but I took it out for a better PSU). Had the two diode treatment for the 12v rail as well. Original caps are a mix of Jun Fu, CapXon, and JEE - all still good.
                          I also have another L&C that has the same exact PCB design as the Premier. Although it's built better, it's still crap. One day the wires started smoking on it and burned. Apparently something overloaded, though I never figured what. Plugged in the PSU the next day, and it worked. Needless to say, I didn't and never will use it in a computer again.
                          ...
                          I should probably upload my entire L&C/Deer collection some day.
                          They never stop working! Even if their voltages are completely off.

                          Comment


                            Re: Power supply build quality pictorial. part 2

                            Originally posted by goodpsusearch
                            They never stop working! Even if their voltages are completely off.
                            they stop working when mr. sledgehammer says hi to them!
                            sigpic

                            (Insert witty quote here)

                            Comment


                              Re: Power supply build quality pictorial. part 2

                              Today I pulled a RAIDMAX RX-380K out of an old, partially recapped, eMachines, which I assume was a replacement for the infamous mobo roasting Bestec.

                              Case is about what you would expect from the lowest end Raidmax. Flimsy, sharp, dull gray. It's also the lightest PSU I've ever held.

                              Label shot. Optimistic much? Love the inclusion of a -5v rail.

                              Cables. All of them short, all of them 20AWG, except for the berg connectors which are 22. Cable count:
                              1 x 20+4 pin ATX
                              4 x molex
                              2 x berg
                              1 x SATA (why?)
                              1 x P4

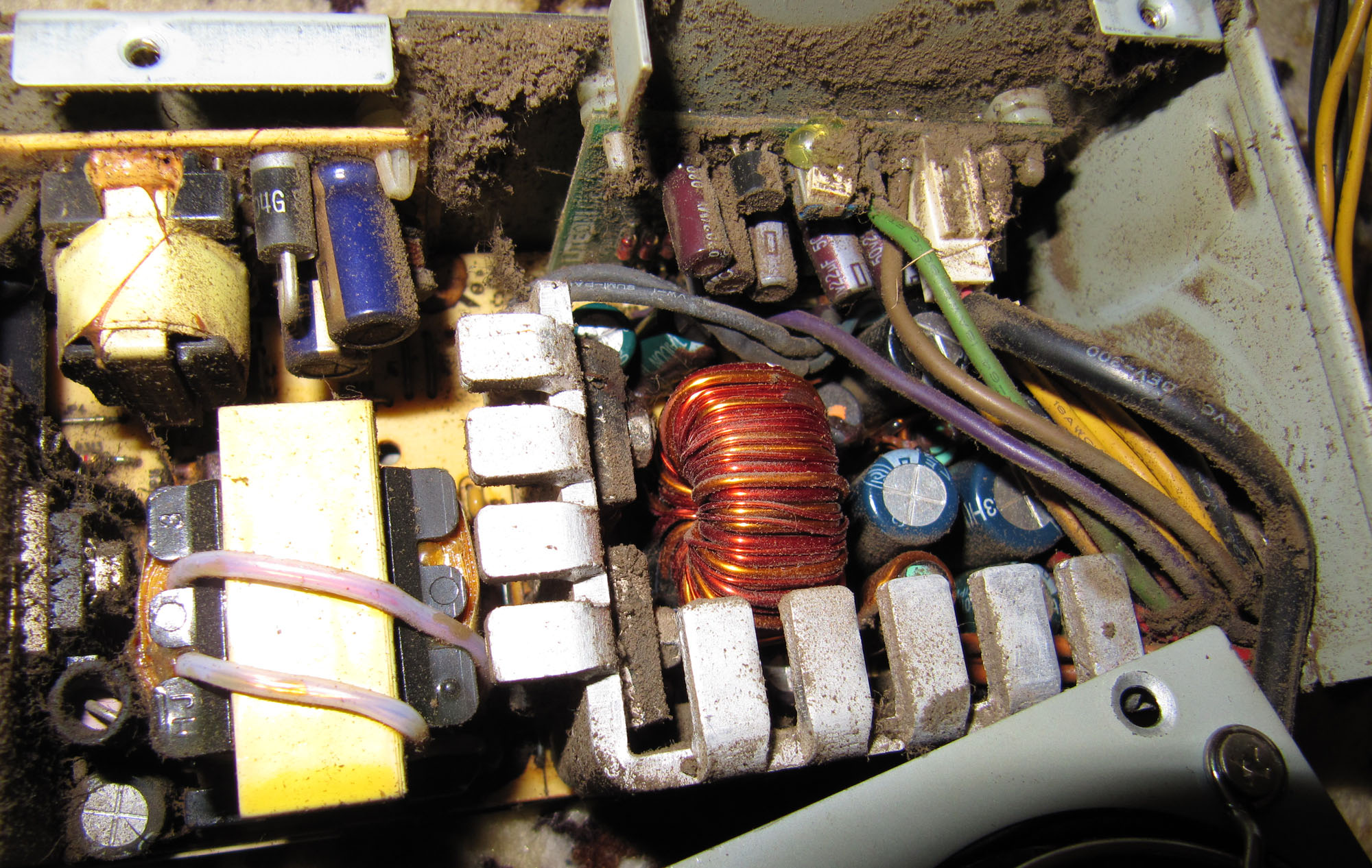

                              Innards. 380W isn't a lot of power, but even then I think this unit is a tad bit (read:very) wimpy looking considering the rating. TINY heatsinks, pitiful excuse for input filter, 4 diode treatment, and crapcaps galore. Speaking of cap selection, primaries are by HEC, secondaries by JEE, GL, and SC. It's almost as if they had a bag of the worst capacitors ever, randomly grabbed a handful, stuck 'em in, and called it a day.

                              The fan. Sleeve bearing, model number leads to a web page with a spec sheet for several fans, "Metallic Plastic co."

                              Overall, one of the worst PSUs I've ever had the displeasure of owning. However, a few things did surprise me. 1. It still works. 2. No bad caps. 3. It's still on sale. Yeah, they still sell this thing, and it has a 4 star rating on newegg. *sigh*
                              EDIT: Formatting.
                              Last edited by cheese007; 07-30-2010, 09:24 PM.

                              Comment


                                Re: Power supply build quality pictorial. part 2

                                It's a Sun Pro by the looks. Probably only good for wires and maybe the fan. Just make sure you re-lube it first. I've seen a few of those TP/Te Bao fans fail before.
                                I love putting bad caps and flat batteries in fire and watching them explode!!

                                No wonder it doesn't work! You installed the jumper wires backwards

                                Main PC: Core i7 3770K 3.5GHz, Gigabyte GA-Z77M-D3H-MVP, 8GB Kingston HyperX DDR3 1600, 240GB Intel 335 Series SSD, 750GB WD HDD, Sony Optiarc DVD RW, Palit nVidia GTX660 Ti, CoolerMaster N200 Case, Delta DPS-600MB 600W PSU, Hauppauge TV Tuner, Windows 7 Home Premium

                                Office PC: HP ProLiant ML150 G3, 2x Xeon E5335 2GHz, 4GB DDR2 RAM, 120GB Intel 530 SSD, 2x 250GB HDD, 2x 450GB 15K SAS HDD in RAID 1, 1x 2TB HDD, nVidia 8400GS, Delta DPS-650BB 650W PSU, Windows 7 Pro

                                Comment
