    optocoupler? B3PBE0000060

    Hi,
    I'm troubleshooting SN board of Panasonic plasma TV and I'm curious about a component that looks like an optocoupler, it has 5 legs though. I tried to check between legs 1-2, but no diode junction there, it's open. So either that is not a diode there or it's burnt.
    For future searches, the part num is B3PBE0000060, the label on the component says 9157 and N219.
    Any idea?

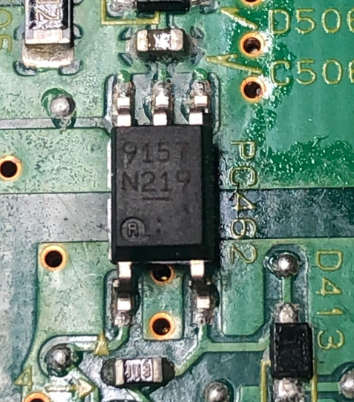

    Click image for larger version Name: image.png Views: 504 Size: 314.7 KB ID: 3277057​
    Tags: None
    • harp
      Badcaps Veteran
      • Jun 2022
      • 645
      • Planet Earth
      #2

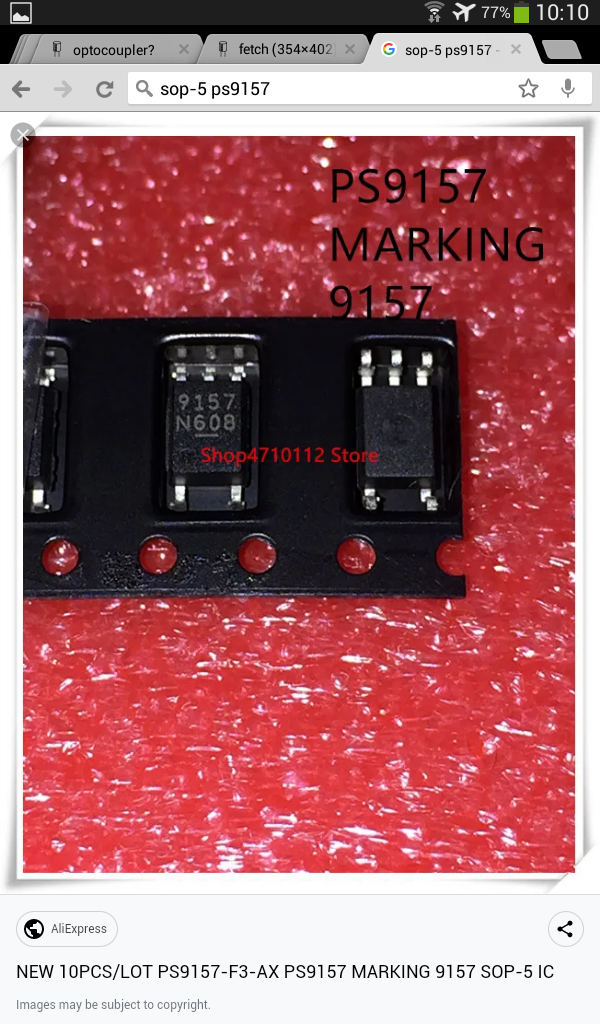

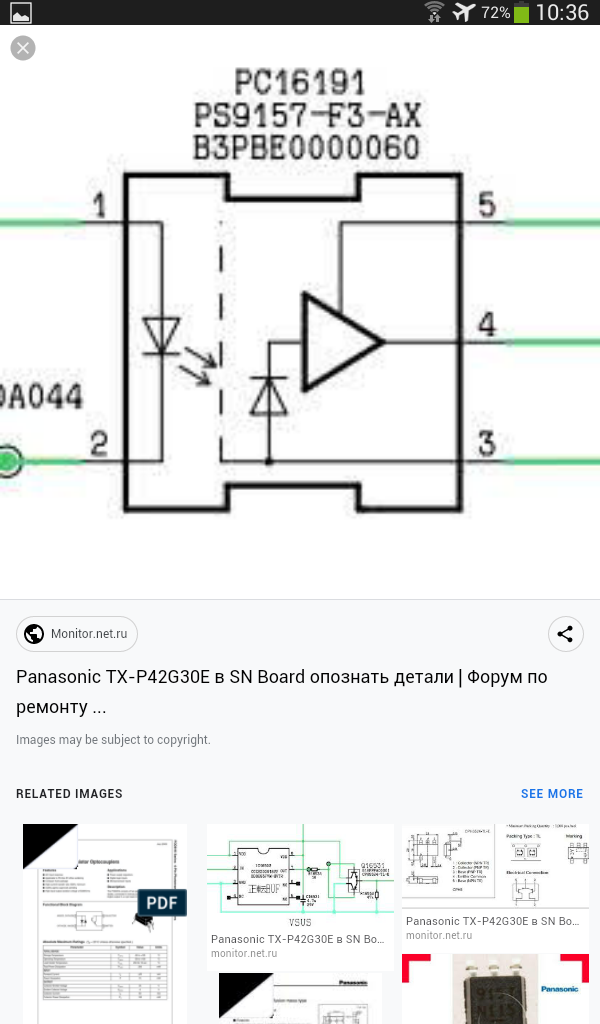

      PS9157 SOP-5
      Attached Files

        Comment

        • jm1234
          Senior Member
          • Jan 2024
          • 64
          • Slovakia
          #3
          Thanks, but I don't see any data sheet for either 9157 or PS9157.

            Comment

            • harp
              Badcaps Veteran
              • Jun 2022
              • 645
              • Planet Earth
              #4
              I dont know, maybe try similar ps9151pdf and extract/conclude needed data.
