Asus VivoBook UX333FN boardview needed

08-15-2025, 11:28 PM

Good day to all folks,

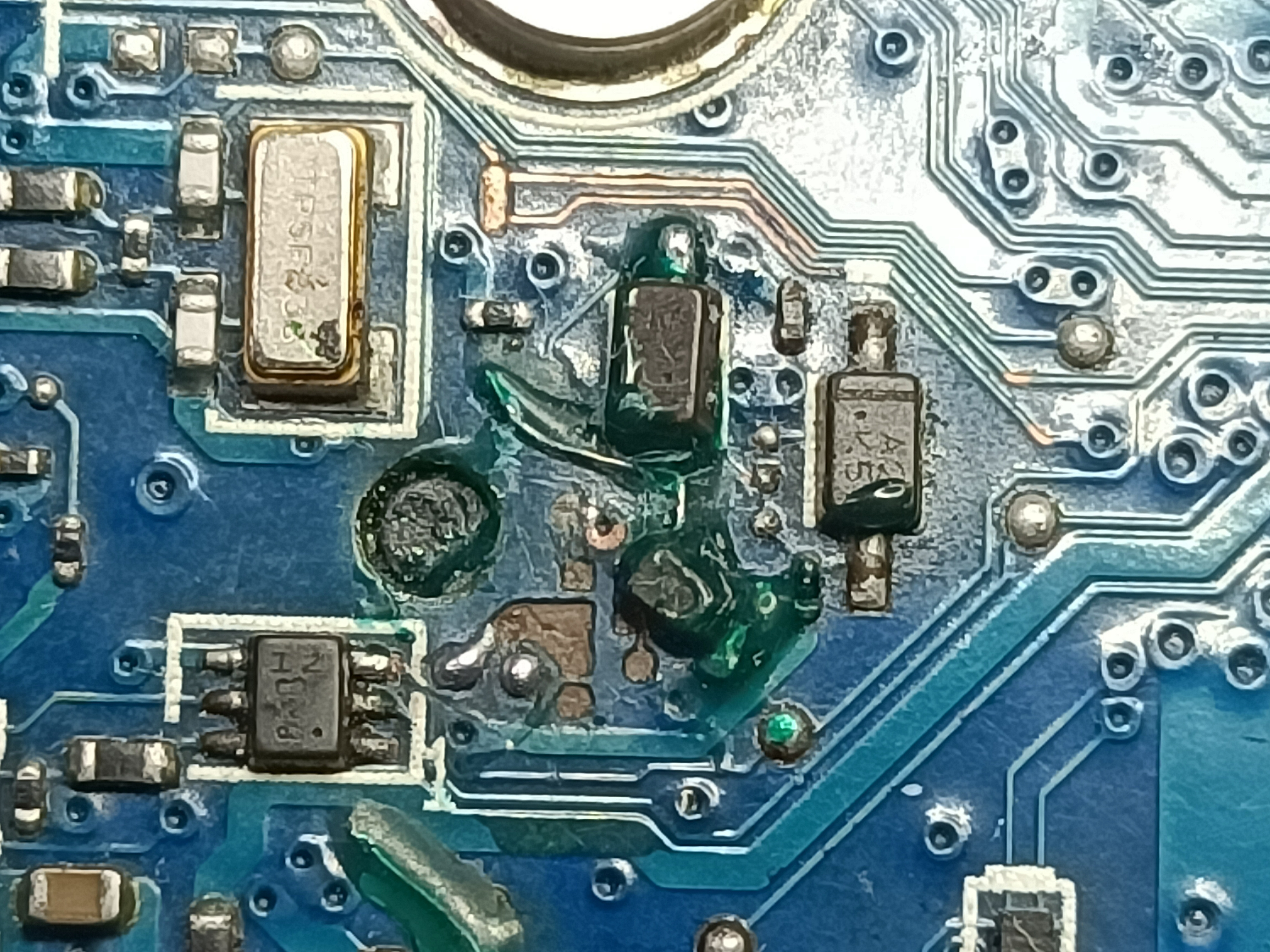

I have motherboard Asus VivoBook UX333FN motherboard, but it is not visible the parts that corroded,

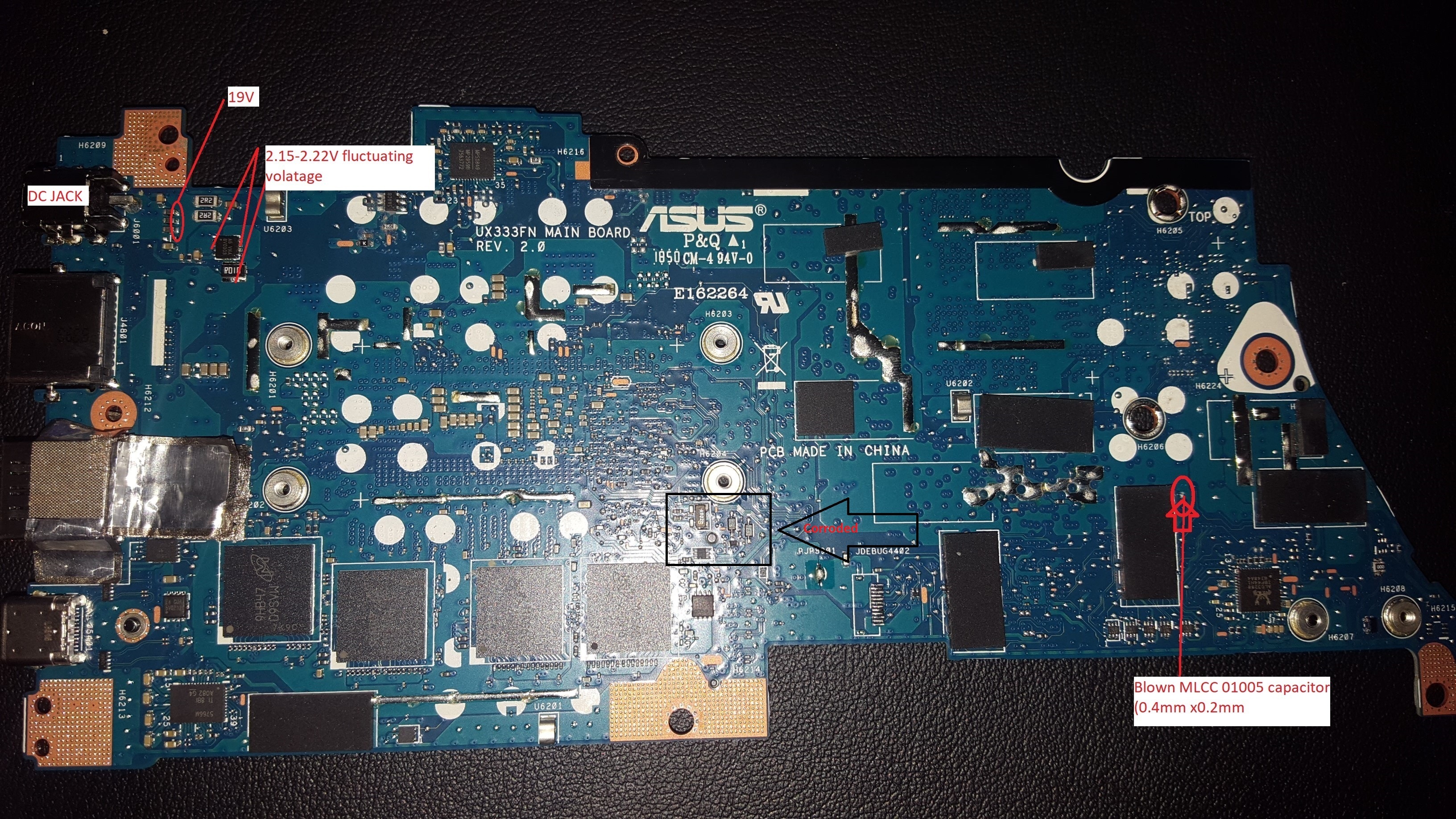

anyone has a boardview. Attach is the picture TIA

Byulo.

Attached Files
Premium supporters get full download access and other benefits.
Tags: None
byulo

ECT

Join Date: Jun 2012

Posts: 94

Country: Philippines
#2

09-10-2025, 08:56 PM

Originally posted by byulo

Good day to all folks,

I have motherboard Asus VivoBook UX333FN motherboard, but it is not visible the parts that corroded,
anyone has a boardview. Attach is the picture TIA

Byulo.

I found the boardview
Attached Files
Premium supporters get full download access and other benefits.

ASUS UX333FN UX333FL UX333FAC REV2.0.rar (122.1 KB, 46 views)
