    IC Marking Codes and Datasheets

    Thread started and edited by piernov and SMDFlea. All members are welcome to contribute to the thread, if you have any
    pictures, suggestions, spot any mistakes or want new content adding send me a PM or just make a post. Thanks

    EDIT: See "IC Marking Codes and Datasheets #2" for more posts. All members please post comments in thread #2.
    __________________________________________________ __________________________________________________ ________

    Click on the name next to the post # to view the single post

    Last edited by SMDFlea; 01-13-2024, 02:34 PM.
    All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

    #2
    IC Marking Codes and Datasheets

    Richtek
    ----------------------------------------------------------------------------------------------------------------------------
    Datasheets & Other Info

    Datasheets https://www.richtek.com/?sc_lang=en

    Cross reference https://www.richtek.com/Design%20Sup...ss%20Reference
    ----------------------------------------------------------------------------------------------------------------------------

    Top markings

    Markings are:
    Code:
    AABYM
     DNN
    With the first 2 or 3 characters being the marking code.AA are letters or digits,B is generally an = – or ' ' .YMDNN is the datecode/batch number.

    The package also matters, different ICs with different packages can have the same marking code.

    Marking list
    https://www.badcaps.net/forum/showthread.php?t=39126 Post #1 and #14 Credit to dycc and techman1025
    https://novoselovvlad.ru/2018/01/01/%D0%BC%D0%B0%D1%80%D0%BA%D0%B8%D1%80%D0%BE%D0%B2%D 0%BA%D0%B0-%D0%BC%D0%B8%D0%BA%D1%80%D0%BE%D1%81%D1%85%D0%B5%D 0%BC-richtek/

    Code:
    Marking code | Package      | Part number   | Examples
    —————————————————————————————————————————————————————————
    4B=          | WQFN-20L 3x3 | RT8207PGQW    | 4B=1G
    8A           | WQFN-20L 3x3 | RT8243AZQW    | 8A 1H
                 | SOT-89-3     | RT9166A-12GXL | J H=
    Examples

    RT8207PGQW


    RT8243AZQW


    Thanks to Khabibb for the pictures.
    Attached Files
    Last edited by SMDFlea; 01-14-2024, 06:38 AM.
    All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

    Comment


      #3
      IC Marking Codes and Datasheets

      Monolithic Power Systems
      -------------------------------------------------------------------------------------------------------------------------------------
      Datasheets & Other Info

      Package information,including Top Marking per package type and letter suffix - https://www.monolithicpower.com/en/s...formation.html

      Top format Marking Decoding - https://cdn.badcaps-static.com/pdfs/...3299cc5945.pdf
      -------------------------------------------------------------------------------------------------------------------------------------

      Top markings

      Often with an horizontal line above the markings, markings are:
      ____
      XXXY
      LLL
      ___
      XXY
      LL

      MPYW
      XXXX
      LLL

      with XXXX , XXX or XX the marking code specific to each IC model, Y a year code, W a week code and LL or LLL a batch number.

      For smaller packages, often with a vertical bar on the left (matching with pin 1).
      NOTE: Some TI parts also have the vertical bar on the left,but will often have dots or dashes above or below the marking code
      Code:
      |XXXY
      with XXX the marking code and Y a year code.

      Marking list

      Code:
      Marking code | Part number    | Examples | Package
      ------------------------------------------------------------
      AEA*         | NB671GQ        |          |
      AGR          | MPM3805GQB     |          | QFN-12 (2.5mmx3mm)
      AHD          | MPM3805GQB-18  |          | QFN-12 (2.5mmx3mm)
      AHE          | MPM3805GQB-12  |          | QFN-12 (2.5mmx3mm)
      AJJ          | MPM3805GQB-33  |          | QFN-12 (2.5mmx3mm)
      AJJ          | MPM3805GQB-33  |          | QFN-12 (2.5mmx3mm)
      AJK          | MPM3805GQB-25  |          | QFN-12 (2.5mmx3mm)
      AKV*         | NB681          | AKVJ     |
      ALC*         | MP2015AGQ-33   |          | QFN-8 (3mmx3mm)
      ALT*         | NB679GD        |          | QFN-12 (2mm x 3mm)
      ALV*         | NB680GD        |          |
      AMF*         | MP2015AGJE     |          | TSOT23-4
      AMF*         | MP2015AGQ      |          | QFN-8 (3mmx3mm)
      APA*         | NB679AGD       |          |
      APB*         | NB680AGD       |          | QFN-12 (2mm x 3mm)
      AYK          | NB692GD-Z      |          |
      AZE*         | MP6908GJ       |          | TSOT23-6
      BJD*         | MP2988GQ-Z     |          | QFN-20
      DC*          | MP2015AGG-33   |          | QFN-6 (2mmx2mm)
      DD*          | MP2015AGG      | DDJ      | QFN-6 (2mmx2mm)
      DK*          | MP3421         | DKJ      |
      FZ*          | MP2329GG       | FZM      |
      Examples

      MP3421


      Datasheet: https://www.monolithicpower.com/en/d...en/sku/MP3421/

      NB681
      https://www.badcaps.net/forum/showpost.php?p=1046720 (Marking: AKV*) Thanks to Sephir0th

      Datasheet: https://www.monolithicpower.com/en/d...cument_id/6390

      ALV* NB680GD ,APA* NB679AGD Datasheets https://www.badcaps.net/forum/showpo...63&postcount=2.Thanks to mon2

      Thanks to eccerr0r for the MP3421 picture. Thanks to Rewired,Sephir0th and Sergio Willian for providing the original pictures
      that accidentaly got deleted due to a..... technical error.
      Attached Files
      Last edited by SMDFlea; 01-14-2024, 06:40 AM.
      All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

      Comment


        #4
        IC Marking Codes and Datasheets

        Anpec
        ----------------------------------------------------------------------------------------------------------------------------
        Datasheets & Other Info

        Datasheets http://www.anpec.com.tw/

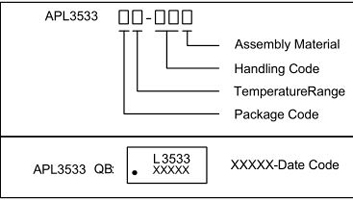

        All Anpec part numbers start with the letters AP (as of dec 2020),Example: APW**** ,APL**** ,APA****
        ----------------------------------------------------------------------------------------------------------------------------

        Marking list

        Code:
        Marking code | Part number
        —————————————————————————————————————
        APW7165C     | APW7165C
        L3533        | APL3533
        Examples

        APW7165C


        APL3533

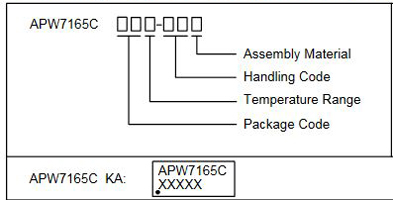

        APW7165C picture copied from ebay. Thanks to questore for the APL3533 picture
        Attached Files
        Last edited by SMDFlea; 01-14-2024, 06:41 AM.
        All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

        Comment


          #5
          IC Marking Codes and Datasheets

          GMT Global Mixed-Mode Technology
          ----------------------------------------------------------------------------------------------------------------------------
          Datasheets & Other Info

          Datasheets are available only for current products - http://www.gmt.com.tw/product/tree.php
          ----------------------------------------------------------------------------------------------------------------------------

          Top markings

          Attached is a pdf containing most marking codes from the datasheets at the GMT website (as of 5th December 2021) ,including EOL
          and some obsolete parts.Also included are marking codes from some various datasheets not listed at the website.

          Examples

          G5671RE1U
          https://www.badcaps.net/forum/troubl...98#post1487498 .Thanks to Sephir0th

          .
          Attached Files
          Last edited by SMDFlea; 01-14-2024, 06:42 AM.
          All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

          Comment


            #6
            IC Marking Codes and Datasheets

            Sinopower
            ----------------------------------------------------------------------------------------------------------------------.
            Datasheets & Other Info

            NMOS PMOS Mosfets.Datasheets + Cross Ref http://www.sinopowersemi.com/Form2/F501.aspx

            All part numbers start with the 2 letters SM (as of dec 2020),example: SM9974DS .
            ----------------------------------------------------------------------------------------------------------------------.

            Top markings

            Larger packages have the Sinopower logo, with the part number on the top line and date code on the second line.

            Examples

            SM7302ES
            Attached Files
            Last edited by SMDFlea; 01-14-2024, 06:42 AM.
            All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

            Comment


              #7
              IC Marking Codes and Datasheets

              onsemi & Fairchild
              ----------------------------------------------------------------------------------------------------------------------.
              Datasheets & Other Info

              Fairchild is a part of onsemi since 2017 . Some onsemi parts will have the Fairchild logo

              onsemi was previously named ON Semiconductor. Datasheets https://www.onsemi.com/products
              ----------------------------------------------------------------------------------------------------------------------.

              Top markings

              Some smaller IC`s have the same marking code for different packages,or the same packages with
              the same footprint but in a different case size.To differentiate between the case sizes or a Voltage
              option the marking can be rotated 0,90,180 or 270 degrees from the pin #1 reference.


              Marking list
              Code:
              Marking code | Package      | Part number     | Examples
              —————————————————————————————————————————————————————————
              AA*          | DFN8         | NCP5359AMNR2G   | AAK,AAP,AA9
              A3*          | DFN8         | NCP81145        |
              A3*          | DFN8         | NCP81151        |
              A4*          | DFN8         | NCP81161        | A46
              A4*          | DFN8         | NCP81146        |
              AJ*          | DFN8         | NCP5901         |
              AZ*          | DFN8         | NCP5901B        |
              CG*          | DFN8         | NCP81253        | CGV,CGT,CG6,CGE
              CL*          | DFN8         | NCP81074A       |
              CM*          | DFN8         | NCP81074B       |
              CP*          | DFN8         | NCP81151B       |
              CR*          | DFN8         | NCP81258        |
              CR*          | DFN8         | NCP81258H       |
              DY*          | DFN8         | NCP81168        | DYP
              L3E          | DFN8         | ADP3110A        |
              L3C          | DFN8         | ADP3120A        |
              V71A         | MSOP-8       | NCV81071AZR2G   |
              V71B         | MSOP-8       | NCV81071BZR2G   |
              V71C         | MSOP-8       | NCV81071CZR2G   |
              Examples

              FDPC5030SG


              Datasheet https://cdn.badcaps-static.com/pdfs/...44436d5213.pdf

              NCP5359A


              Datasheet: https://www.onsemi.com/pub/Collateral/NCP5359A-D.PDF


              Thanks to suiramix for the 5030SG picture
              Attached Files
              Last edited by SMDFlea; 01-14-2024, 06:43 AM.
              All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

              Comment


                #8
                IC Marking Codes and Datasheets

                uPI Semiconductor & Ubiq Semi
                ----------------------------------------------------------------------------------------------------------------------------
                Datasheets & Other Info

                uPI - https://www.upi-semi.com/en-category-upi-267
                Ubiq - https://www.ubiq-semi.com/en-category-upi-267

                Ubiq Semi mosfet part numbers start with the letter Q ,often QM*** or QN***
                ----------------------------------------------------------------------------------------------------------------------------

                Marking list

                Code:
                Marking code | Package     | Part number | Examples
                ——————————————————————————————————————————————————
                DU           | WDFN2x2-8L  | UP1959PDN8  |  DU
                                                           ****

                M3016D       | TO-252      | QM3016D     |
                Examples

                UP1959PDN8


                QM3016D
                Attached Files
                Last edited by SMDFlea; 01-14-2024, 06:44 AM.
                All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                Comment


                  #9
                  IC Marking Codes and Datasheets

                  Toshiba Semicon
                  ----------------------------------------------------------------------------------------------------------------------------
                  Datasheets & Other Info

                  Datasheets https://toshiba.semicon-storage.com/...t/mosfets.html

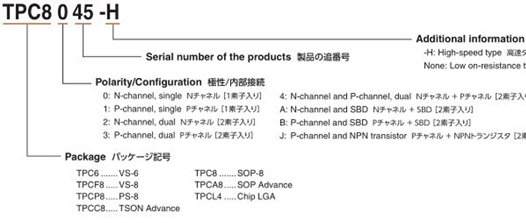

                  Part Naming Convention https://toshiba.semicon-storage.com/...er/mosfet.html
                  ----------------------------------------------------------------------------------------------------------------------------

                  Marking list

                  Code:
                  Marking code    | Package        | Part number
                  ——————————————————————————————————————————————————
                  NT              | SOT-563        | SSM6N44FE

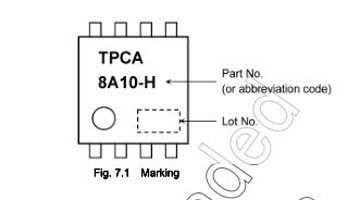

                                  | * ES6

                  TPCA            | ** SOP Advance | TPCA8A10-H
                  8A10-H
                  ——————————————————————————————————————————————————
                  * = Toshiba Package name
                  ** = Toshiba Package
                  Examples

                  SSM6N44FE


                  TPCA8A10-H
                  Attached Files
                  Last edited by SMDFlea; 01-14-2024, 06:45 AM.
                  All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                  Comment


                    #10
                    IC Marking Codes and Datasheets

                    Vishay Siliconix
                    ----------------------------------------------------------------------------------------------------------------------------
                    Datasheets & Other Info

                    All datasheets are available using the site search https://www.vishay.com/mosfets/tab/products/

                    ----------------------------------------------------------------------------------------------------------------------------

                    Marking list

                    Code:
                    Marking code | Package          | Part number   | Examples
                    ————————————————————————————————————————————————————————
                    AL           | *PowerPAK SC-70  | SiA432DJ      | ALW,ALM
                                   *SC-70-6L Single
                    ————————————————————————————————————————————————————————
                    * = Vishay package name
                    Examples

                    SiA432DJ
                    Attached Files
                    Last edited by SMDFlea; 01-14-2024, 06:45 AM.
                    All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                    Comment


                      #11
                      IC Marking Codes and Datasheets

                      O2Micro
                      ----------------------------------------------------------------------------------------------------------------------------
                      Datasheets & Other Info

                      There are no datasheets available at the website http://www.o2micro.com/

                      There are some Application Diagrams included in the o2 product catalogs,but too blurred to be of much use.

                      https://cdn.badcaps-static.com/pdfs/...3d9513077a.pdf
                      https://cdn.badcaps-static.com/pdfs/...1ff56a706b.pdf
                      ----------------------------------------------------------------------------------------------------------------------------

                      Examples

                      OZ8681 , OZ8682LN

                      https://www.badcaps.net/forum/showthread.php?t=97076 Thanks to emaghanim


                      OZ8682LN
                      Attached Files
                      Last edited by SMDFlea; 01-14-2024, 06:46 AM.
                      All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                      Comment


                        #12
                        IC Marking Codes and Datasheets

                        Silergy
                        ----------------------------------------------------------------------------------------------------------------------------
                        Datasheets & Other Info

                        Datasheets https://www.silergy.com/search.html?...t&q=&__hash__=
                        Q1 2022 Catalog: https://www.badcaps.net/forum/attachment.php?attachmentid=256073&stc=1&d=1644609 684
                        ----------------------------------------------------------------------------------------------------------------------------

                        Top markings

                        The first 2 or 3 characters are the marking code,the next 3 are Year, Week and Lot number.


                        Marking list

                        Key: N/D = No Datasheet, N/S = No Schematic, ( ) = Schematic the IC is used in

                        P/T = Package Type, N/I = No Information , *** = Year - Week - Lot number


                        Code:
                        Note: Since making this list some datasheets that are marked as N/D may now be available
                        _________________________________________________________________

                        3A***   SY8388C3RHC    N/D (Wistron SouthPeak13 ADL-P)
                        A0S***  SY8210AQVC     N/D (LA-D993P)
                        AA***   SY8008AAAC     P/T SOT23-5, TSOT23-5
                        AAJ***  SY6288AFAC
                        AAL***  SY6288BFAC
                        AAM***  SY6288CFAC
                        AAN***  SY6288DFAC
                        AB***   SY8008BAAC
                        ABD***  SY6288BCAC
                        ABE***  SY6288DCAC
                        ABT***  SY6288ACAC
                        ABU***  SY6288CCAC
                        ABV***  SY6288EFAC
                        ABW***  SY6288ECAC
                        AC***   SY8008CAAC
                        ACJ***  SY6288D1FAC
                        ACK***  SY6288D1CAC
                        AD***   SY8009AAAC
                        ADK***  SY6288C1CAC    P/T MSOP8
                        ADL***  SY6288C2CAC    P/T MSOP8
                        ADS***  SY8205DNC      P/T DFN4x3-12
                        AE***   SY8065ABC      N/D (Pegatron VA70) P/T SOT23-6
                        AEH***  SY6288D2CAC    P/T MSOP8
                        AEX***  SY6288C4CAC    P/T MSOP8
                        AHH***  SY8205FCC      P/T SO8E
                        AHV***  SY6288D10CAC   N/D (LA-B211P)
                        AJY**   SY8213
                        Ar***   SYX196C1QNC    N/D (NM-A381)
                        ARW***  SY6288C30CAC   P/T MSOP8
                        AS***   SY8009BEBC
                        AWF***  SY6982E
                        AWR***  SY8286ARAC
                        AWS***  SY8288RAC      N/D (LA-C371P)
                        AWV***  SY8286BRAC     (LA-C371P)
                        AWW***  SY8286CRAC     N/D (LA-C371P)
                        AZD***  SY6288C5CAC    P/T MSOP8
                        AZE***  SY6288D5CAC    P/T MSOP8
                        B0D***  SYV828CRAC     N/D (LA-F401P)
                        B3***   SY8388ARHC     P/T QFN-16
                        BAA***  SY8286RAC      (LA-F486P)
                        BAB***  SY8288BRAC     N/D (LA-F611P)
                        BAC***  SY8288CRAC     N/D (Quanta ZHP ZSP)
                        bB***   SY8263AIC      N/D (JBL XTREME 2 Service Manual)
                        BC****  SY8310RAC      N/D (NM-C421) (LA-J261P - N/S)
                        BDJ***  SY8288ARAC     N/D (HuaQin NB2593)
                        BG***   SY8008BACC
                        BI***   SY8008AACC
                        BID***  SY8284RAC      N/D (LA-G021P)
                        BIE***  SY8284BRAC     (LA-G07FP)
                        BIL***  SY8284CRAC     N/D (Vellfire-6050a3087503-mb-a01)
                        bP***   SY8088IAAC     P/T SOT23-5
                        BP***   SY8033BDBC     N/D (LA-6222P)
                        Bq***   SY6288D30AAC   P/T SOT23-5
                        BQX***  SY8180CRAC     N/D (LA-F611P)
                        Br***   SY6288C30AAC   P/T SOT23-5
                        BTX***  SY8270CTMC     N/D (LA-H492P)
                        Bu***   SY6288DAAC
                        CO***   SY6280         P/T SOT23-5
                        CO***   SY6288EAAC     P/T SOT23-5
                        CU***   SY8009BABC
                        CW***   SY6288AAAC
                        CXL***  SYV828C1RAC    P/T QFN3x3-16 (LA-F711P)
                        DB***   SY6288BAAC
                        DF***   SY6288CAAC
                        dH***   SY8843LQWC     P/T QFN1.5x1.5-7
                        DS***   SY6288D1AAC
                        EC***   SY8063DBC
                        eH***   SY8386RHC      N/D
                        EI***   SY6827
                        EN***   SY8201ABC      P/T SOT23-6
                        Fd***   SY6288A1AAC    P/T SOT23-5
                        FK***   SY8032ABC      N/D (LA-B102P)
                        fM***   SY8032IABC     LA-K701P
                        FN***   SY76875DBI     N/D N/I
                        FP***   SY6288C3AAC    P/T SOT23-5
                        Gg***   SY8057QDC      N/D (LA-E153P)
                        GN***   SY8809DFC      N/D (LA-8712P) P/T DFN-8 2X2
                        GP***   SY8037ADCC     N/D (LA-8711P) P/T DFN12P
                        GT***   SY8037BDCC     N/D (LA-8391P)
                        HA***   SY8036LDBC     N/D (LA-8241P)
                        HC***   SY6288C6AAC    N/D (Wistron Husk Petra -4M)
                        HI***   SY8037DDCC     N/D (LA-8941P)
                        HU***   SYW232DFC      N/D (Wistron EA30_BM) P/T DFN-8 2X2
                        JD***   SY8003DFC
                        JR***   SY8104ADC
                        JX***   SY8089AAC      (NM-A311P)
                        Kd***   SY8388RHC      (LA-H101P ?)
                        Km***   SY6288E1AAC    (NH70RCQ_6-71-NH500-D02A)
                        KT***   SY8868QMC      N/D (NM-A271) P/T QFN-10
                        KW***   SY8003ADFC
                        LD***   SY8088AAC
                        MB***   SY8032EABC
                        mH***   SY8057CQDC     N/D (Wistron SouthPeak13 ADL-P)
                        MS***   SY8208BQNC     N/D (LA-9535P + Read post #6 [url]https://www.badcaps.net/forum/showthread.php?t=75034[/url])
                        MT***   SY8208CQNC     N/D (LA-9535P)
                        MU***   SY8208DQNC     N/D (LA-A091P + Read posts 11 and 12 [url]https://www.badcaps.net/forum/showthread.php?t=50800[/url])
                        N3***   SM80593LDQC    P/T DFN1.5×1.5-6
                        ND***   SY8206BQNC     N/D (NM-A281)
                        Ne***   SY6288E2AAC    P/T SOT23-5
                        NE***   SY8206CQNC     N/D (LA-A021P ?)
                        NF***   SY8206DQNC     N/D (LA-A021P)
                        PE***   SYV634DEC      N/D (NM-C421)
                        Qq***   SY8386BRHC     (EL432 EL532 LA-H131P)
                        QW***   SY6280AAAC     P/T SOT23-5
                        RE***   SY6288D20AAC   (LA-C371P)
                        RF***   SYX198BQNC     N/D (NM-A561)
                        RG***   SYX198CQNC     N/D (NM-A561)
                        RH***   SYX198DQNC     N/D (LA-E311P)
                        RI***   SYX196BQNC     N/D (LA-A994P)
                        RJ***   SYX196CQNC     N/D (LA-C282P)
                        RK***   SYX196DQNC     N/D (LA-D071P)
                        rM***   SY8388CRHC     N/D (NM-D031)
                        RT***   SY6288C20AAC   (LA-C371P)
                        Te***   SY6861B1ABC    (LA-G021P)
                        VC***   SY8003EDFC
                        Vt***   SY8843QWC      (SF314-57 NB8511 MB)
                        Wm***   SY8057BQDC     N/D N/S
                        XT***   SY8253ADC      P/T TSOT23-6
                        XU***   SY8253AIC      P/T TSOT23-8
                        yQ***   SY8388BRHC     N/D (LA-K261P)
                        YU***   SY8201CABC     P/T SOT23-6
                        YW***   SY8368QNC      P/T QFN3x3-10
                        Examples

                        SY8286BRAC



                        Thanks to Zibbo for the picture.
                        Attached Files
                        Last edited by SMDFlea; 06-24-2024, 03:36 PM. Reason: N3*** SM80593LDQC P/T DFN1.5×1.5-6
                        All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                        Comment


                          #13
                          IC Marking Codes and Datasheets

                          Renesas & Intersil
                          ----------------------------------------------------------------------------------------------------------------------------
                          Datasheets & Other Info

                          Datasheets are available using the site search: https://www.renesas.com/us/en/search?keywords=

                          If the full datasheet is locked (requires renesas account),search for "Design Files" ,they will have pdf,brd and/or gerber files
                          ----------------------------------------------------------------------------------------------------------------------------

                          Top markings

                          Intersil packages can have an underlined i (logo) ,end with H ,FHZ ,HRTZ ,IRTZ ,AHRZ or similar or have just numbers and a letter

                          Marking list

                          Code:
                          Marking code | Package         | Part number    | Examples
                          ————————————————————————————————————————————————————————
                          9241H        | 32 Ld 4x4 TQFN  | ISL9241HRTZ    |

                          ————————————————————————————————————————————————————————
                          Examples

                          ISL9241
                          Attached Files
                          Last edited by SMDFlea; 01-14-2024, 06:48 AM.
                          All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                          Comment


                            #14
                            IC Marking Codes and Datasheets

                            Excelliance MOS
                            ----------------------------------------------------------------------------------------------------------------------------
                            Datasheets & Other Info

                            All datasheets are available using the site search http://www.excelliancemos.com/product.php?CNo=8
                            ----------------------------------------------------------------------------------------------------------------------------

                            Top markings

                            Larger packages are marked with the distinctive M shaped company logo, smaller packages
                            such as EDFN 2x2 have no logo just a 2 digit code .

                            Marking list

                            Code:
                            Marking code | Package     | Part number
                            ——————————————————————————————————————————————

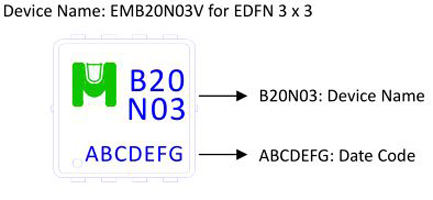

                            Line 1: B20  | EDFN 3x3    | EMB20N03V
                            Line 2: N03
                            Examples

                            EMB20N03V
                            Attached Files
                            Last edited by SMDFlea; 01-14-2024, 06:49 AM.
                            All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                            Comment


                              #15
                              IC Marking Codes and Datasheets

                              Alpha Omega Semiconductor
                              -------------------------------------------------------------------------------------------------------------------------------------
                              Datasheets & Other Info

                              Datasheets http://www.aosmd.com/
                              -------------------------------------------------------------------------------------------------------------------------------------

                              Top markings

                              Larger packages have the AO logo,an A inside a circle.Part numbers for larger packages are on the first line
                              with Year,Week and Lot codes on the second line below.
                              Parts with 4 letters/digits code on the top line have either 4 letters or 2 or 3 letters followed by digits.The
                              last 2 digits can be a special parameter code and option.
                              The package also matters, different ICs with different packages can have the same marking code.

                              Marking list

                              Code:
                              DrMOS,Power IC`s,EZBuck DC-DC Regulators.

                              AA0B   AOZ2367QI-11
                              AAEM   AOZ2150EQI-30
                              AAEW   AOZ2150EQI-31
                              AB00   AOZ5048QI
                              AB01   AOZ2151QI-01
                              AB0B   AOZ2368QI-11
                              ABA0   AOZ5007AQI
                              ABEM   AOZ2151EQI-30
                              ABLM   AOZ2151LQI-30
                              ABP3   AOZ2151PQI-03
                              ABP5   AOZ2151PQI-05
                              ABPA   AOZ2151PQI-10
                              ABTL   AOZ2151TQI-19
                              AC00   AOZ5507QI
                              ACEM   AOZ2253EQI-30
                              ACEM   AOZ2152EQI-30
                              ACEW   AOZ2253EQI-31
                              ACEW   AOZ2152EQI-31
                              ACEY   AOZ2152EQI-28
                              ACEZ   AOZ2152EQI-29
                              ACLM   AOZ2152LQI-30
                              ACS1   AOZ5047QIS-01
                              ACTB   AOZ2253TQI-11
                              ACTL   AOZ2152TQI-19
                              ACTN   AOZ2253TQI-20
                              ADA0   AOZ5008AQI
                              ADEM   AOZ2254EQI-30
                              ADEM   AOZ2153EQI-30
                              ADEW   AOZ2254EQI-31
                              ADEW   AOZ2153EQI-31
                              ADLM   AOZ2153LQI-30
                              ADLW   AOZ2153LQI-31
                              ADP4   AOZ2153PQI-04
                              ADTB   AOZ2254TQI-11
                              ADTN   AOZ2254TQI-20
                              AE00   AOZ5239QI   QFN5x5_31L
                              AE00   AOZ5508QI   QFN3.5x4.5-22L
                              AEAM   AOZ2255AQI-30
                              AEEM   AOZ2255EQI-30
                              AELM   AOZ2255LQI-30
                              AELW   AOZ2255LQI-31
                              AF00   AOZ5131QI   QFN5X5_31L
                              AF00   AOZ5547QI   QFN3.5x5_24L
                              AH01   AOZ5273QI-01
                              AGAA   AOZ2260AQI-10
                              AGAF   AOZ2260AQI-15
                              AGAK   AOZ2260AQI-18
                              AH00   AOZ5537QI
                              AK00   AOZ5237QI   QFN5x5_31L
                              AK00   AOZ5277QI   QFN5x6-39L
                              AK01   AOZ5277QI-01 QFN5x6-39L
                              AL00   AOZ5332QI
                              AL00   AOZ5332QI-C
                              ALAA   AOZ2261AQI-10
                              ALAF   AOZ2261AQI-15
                              ALAK   AOZ2261AQI-18
                              ALAU   AOZ2261AQI-25
                              ALNB   AOZ2261NQI-11
                              ALNC   AOZ2261NQI-12
                              AN00   AOZ5276QI
                              AN01   AOZ5276QI-01
                              AN04   AOZ2369QI-04
                              AN0B   AOZ2369QI-11
                              ANAA   AOZ2262AQI-10
                              ANAF   AOZ2262AQI-15
                              ANAK   AOZ2262AQI-18
                              ANNB   AOZ2262NQI-11
                              ANNC   AOZ2262NQI-12
                              AP00   AOZ5339QI
                              AR00   AOZ5279QI
                              AR01   AOZ5279QI-01
                              AS00   AOZ5017QI
                              AT00   AOZ5016QI
                              ATC1   AOZ2231CQI-01
                              ATC2   AOZ2231CQI-02
                              ATCB   AOZ2231CQI-11
                              ATCC   AOZ2231CQI-12
                              ATCP   AOZ2231CQI-21
                              ATCS   AOZ2231CQI-23
                              AUC1   AOZ2233CQI-01
                              AUC2   AOZ2233CQI-02
                              AUCB   AOZ2233CQI-11
                              AUCC   AOZ2233CQI-12
                              AUCR   AOZ2233CQI-22
                              AUCT   AOZ2233CQI-24
                              AV00   AOZ5636QI
                              AX00   AOZ5613QI
                              AXB0   AOZ5613BQI
                              AXC1   AOZ2232CQI-01
                              AXC2   AOZ2232CQI-02
                              AYB0   AOZ5612BQI
                              AYC1   AOZ2235CQI-01
                              AYC2   AOZ2235CQI-02
                              BDC1   AOZ2234CQI-01
                              BDC2   AOZ2234CQI-02
                              BEN0   AOZ5318NQI
                              BFN0   AOZ5317NQI
                              BFU0   AOZ5317UQI
                              BGN0   AOZ5316NQI
                              BGU0   AOZ5316UQI
                              BHC1   AOZ2236CQI-01
                              BHC2   AOZ2236CQI-02
                              BHN0   AOZ5313NQI
                              BKAA   AOZ2263AQI-10
                              BKAF   AOZ2263AQI-15
                              BKAK   AOZ2263AQI-18
                              BKN0   AOZ5312NQI
                              BKNB   AOZ2263NQI-11
                              BKNC   AOZ2263NQI-12
                              BKU0   AOZ5312UQI
                              BKV1   AOZ2263VQI-01
                              BKV2   AOZ2263VQI-02
                              BLN0   AOZ5311NQI
                              BLU0   AOZ5311UQI
                              BN00   AOZ5518QI
                              BP00   AOZ5517QI
                              BP02   AOZ5517QI-02
                              BR00   AOZ5516QI
                              BR02   AOZ5516QI-02
                              BRNB   AOZ2264NQI-11
                              BRV0   AOZ2264VQI
                              BRV6   AOZ2264VQI-06
                              BRVM   AOZ2264VQI-30
                              BS**   AOZ2140DI
                              BX00   AOZ5617QI
                              BY00   AOZ5616QI
                              BYB0   AOZ5616BQI
                              BYBR   AOZ2250BQI-22
                              BZ00   AOZ5118QI
                              BZ01   AOZ5118QI-01
                              BZA0   AOZ1268AQI
                              CA00   AOZ5117QI
                              CA01   AOZ5117QI-01
                              CAA0   AOZ1267AQI
                              CB00   AOZ5116QI
                              CB01   AOZ5116QI-01
                              CBA0   AOZ1266AQI
                              CS03   AOZ2295QI-03
                              CS05   AOZ2295QI-05
                              CSA3   AOZ2295AQI-03
                              CSC1   AOZ2338CQI-01
                              CT03   AOZ2296QI-03
                              CT05   AOZ2296QI-05
                              CU03   AOZ2297QI-03
                              CU05   AOZ2297QI-05
                              CX00   AOZ22645QI
                              CX00   AOZ2366QI
                              CX04   AOZ2366QI-04
                              CZ00   AOZ2223QI
                              DA00   AOZ2388QI
                              DA00   AOZ22615QI
                              DCB0   AOZ5610BQI
                              DRA0   AOZ1269AQI
                              DSA0   AOZ1270AQI
                              DV00   AOZ23645QI
                              DX00   AOZ22557QI
                              DY00   AOZ23655QI


                              Z2264QIB  AOZ2264QI-11
                              Z2264QIN  AOZ2264QI-20
                              Z5019QI   AOZ5019QI
                              Z5036QI   AOZ5036QI
                              Z5036QI1  AOZ5036QI-01
                              Z5038QI5  AOZ5038QI-05
                              Z5039QI   AOZ5039QI
                              Z5049QI   AOZ5049QI
                              Z5049QI2  AOZ5049QI-02
                              Z5166QI   AOZ5166QI
                              Z5166QI1  AOZ5166QI-01

                              -------------------------------------------------

                              DFN Mosfets.

                              Dual N Channel ,12V-30V

                              2802 AON2802
                              2810 AON2810
                              2812 AON2812

                              Single N channel ,12V-30V

                              B**  AON1634 (** = Week,Lot Code)
                              2406 AON2406
                              2408 AON2408
                              2410 AON2410
                              2420 AON2420

                              Single N Channel ,12V-400V

                              2240 AON2240
                              2260 AON2260
                              2290 AON2290
                              2392 AON2392

                              Single P Channel ,8V-60V

                              2403 AON2403
                              2405 AON2405
                              2409 AON2409
                              2411 AON2411

                              Dual P Channel ,8V-60V

                              2801 AON2801
                              2803 AON2803
                              -----------------------------------------

                              SOT-23 (12V - 30V) Mosfet.

                              Note: A vertically etched two character lot code is on
                                  the right hand side of the IC.

                              ** = Week and Assembly code

                              A4**  AO3404
                              A0**  AO3400
                              L8**  AO3498
                              L4**  AO3494
                              BV**  AO3456
                              BR**  AO3452
                              LU**  AOSS21319C
                              LY**  AOSS32136C
                              LP**  AOSS21115C
                              LS**  AOSS32334C
                              LV**  AOSS32338C
                              LL**  AOSS21311C
                              AN**  AO3420
                              AN**  AO3420L
                              AT**  AO3424
                              AT**  AO3424L
                              Y4**  AO3434A
                              Y4**  AO3434AL
                              X0**  AO3400A
                              X0**  AO3400AL
                              A2**  AO3402
                              A2**  AO3402L
                              ---------------------------

                              SC-70(6L) SOT323 (12V - 30V) Mosfet.

                              Note: A vertically etched two character lot code is on
                                  the right hand side of the IC.
                                  The & is not part of the actual marking code,see the
                                  attached file "SC-70(6L) SOT323 Marking Description.pdf"
                               _
                              0&N  AO7800
                               _
                              0&N  AO7800L

                              2$N  AOSX21319C
                               .

                              X&N  AO7412
                              X&N  AO7412L
                              8&N  AO7408
                              8&N  AO7408L
                              ---------------------------

                              SC-70 SOT323 (12V - 30V) Mosfet.

                              Note: A vertically etched two character lot code is on
                                  the right hand side of the IC.
                                  The & is not part of the actual marking code,see the
                                  attached file "SC-70(6L) SOT323 Marking Description.pdf"

                              U$N  AO7414
                              U$N  AO7414L
                              0    AOSN32338C

                              3$N  AOSN21319C
                               .

                              Z&N  AO7410
                              Z&N  AO7410L

                              0&N  AO7400
                              0&N  AO7400L

                              -----------------------------------------

                              Load Switch.

                              BC**      AOZ1336DI     DFN2x2-8
                              BP**      AOZ1331ADI    DFN3x2-14
                              AY**      AOZ1331DI     DFN3x2-14
                              1363      AOZ1363DI     DFN3x3-12
                              1334      AOZ1334DI-01  DFN3x3-8
                              1334      AOZ1334DI-02  DFN3x3-8

                              1325 ???  AOZ1325DI     DFN3x3-8 EP

                              1341EI    AOZ1341EI     Exposed Pad MSOP-8
                              1341EI    AOZ1341EI-1   Exposed Pad MSOP-8
                              1312EI1   AOZ1312EI-1   MSOP8_EP1

                              ------------------------------------------------------------------------

                              Type C Protection Switches – ECPower ™ Family

                              AA00   AOZ1380DI-01
                              AA01   AOZ1375DI-01
                              AA01   AOZ13929DI-01
                              AA02   AOZ1375DI-02
                              AB01   AOZ1381DI-01
                              AB02   AOZ1381DI-02
                              AC01   AOZ1382DI-01
                              AG01   AOZ1353DI-01
                              AG02   AOZ1353DI-02
                              AG03   AOZ1353DI-03
                              AG04   AOZ1353DI-04
                              AH01   AOZ1374DI-01
                              AH02   AOZ1374DI-02
                              AT01   AOZ1376DI-01
                              AT02   AOZ1376DI-02
                              AV01   AOZ1324DI-01
                              AV01   AOZ1324DI-01
                              AV02   AOZ1324DI-02
                              AV02   AOZ1324DI-02
                              AZ01   AOZ1356DI-01
                              AZ02   AOZ1356DI-02
                              AZ05   AOZ1356DI-05
                              AZ06   AOZ1356DI-06
                              BC01   AOZ1327DI-01
                              BC01   AOZ1327DI-01
                              BC02   AOZ1327DI-02
                              BF01   AOZ1373DI-01
                              BF02   AOZ1373DI-02
                              BS02   AOZ13987DI-02
                              BT02   AOZ13984DI-02
                              C***   AOZ1353LI-01     WLCSP
                              D***   AOZ1353LI-02     WLCSP
                              G***   AOZ1353LI-03     WLCSP
                              H***   AOZ1353LI-04     WLCSP
                              K***   AOZ1356LI-01     WLCSP
                              F***   AOZ1356LI-02     WLCSP
                              L***   AOZ1356LI-05     WLCSP
                              N***   AOZ1356LI-06     WLCSP
                              P****  AOZ1358LI        WLCSP2.05x2.01_16

                              _____________________________________________________
                              Examples

                              AOZ2261AQI-18



                              Thanks to psyjamm for the AOZ2261AQI-18 picture.
                              Attached Files
                              Last edited by SMDFlea; 02-09-2024, 06:46 AM.
                              All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

                              Comment


                                #16
                                Re: IC Marking Codes

                                Thanks 👍

                                Comment


                                  #17
                                  Re: IC Marking Codes and Datasheets

                                  tanks bro

                                  Comment


                                    #18
                                    Re: IC Marking Codes and Datasheets

                                    thanks boss good work

                                    Comment


                                      #19
                                      Re: IC Marking Codes and Datasheets

                                      very helpfull sir tankzzz

                                      Comment


                                        #20
                                        Re: IC Marking Codes and Datasheets

                                        big thanks!!!

                                        Comment

                                        Working...
                                        X
