    Help identifying location of knocked off component on motherboard

    Supposedly arround pin 5 of the bios chip, it's not the chip with the green dot but the one oriented in portraid mode, pin 1 is the topright one. More (and uncompressed) pics on my gdrive https://drive.google.com/drive/folde...n2XuHvxtrzJL_eClick image for larger version  Name:	20241016_095752.jpg Views:	0 Size:	3.14 MB ID:	3571166
  • mon2
    Badcaps Legend
    • Dec 2019
    • 13940
    • Canada

    #2
    Share the model # of this laptop and silkscreening on the logic board. Perhaps someone has a schematic.

    Which exact part is missing and near which silk screen? If possible, point to it with an arrow or your finger.

    Comment

    • Quin TeknoLife
      Member
      • Mar 2024
      • 21
      • the Netherlands

      #3
      It's an HP elitebook 850 g8, and supposedly I knocked off one (or more) resistor(s) close to pin 5 of the bios chip but I can't find where exactly..

      Comment

      • mon2
        Badcaps Legend
        • Dec 2019
        • 13940
        • Canada

        #4
        Post close pics of the area.

        Comment

        • Quin TeknoLife
          Member
          • Mar 2024
          • 21
          • the Netherlands

          #5
          Originally posted by mon2
          Post close pics of the area.

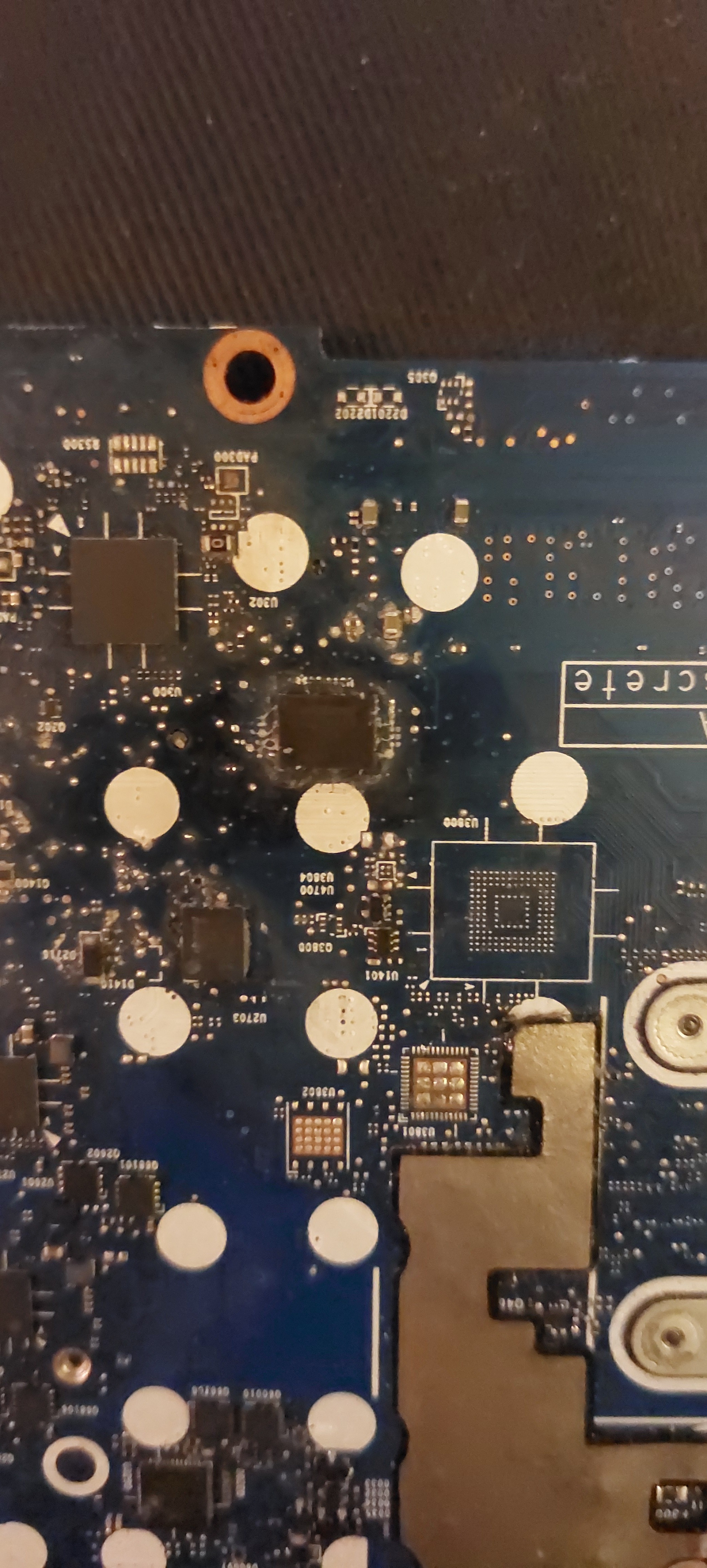

          okayClick image for larger version

Name:	20250305_065657.jpg
Views:	20
Size:	1.77 MB
ID:	3586133Click image for larger version

Name:	20250305_065750.jpg
Views:	22
Size:	3.51 MB
ID:	3586132

          Attached Files

          Comment

          • mon2
            Badcaps Legend
            • Dec 2019
            • 13940
            • Canada

            #6
            Suggest to clean up the sides of each of the shared ICs with a Q-tip dipped in IPA (pharmacy grade alcohol). See lots of blurry sites on the edges of the ICs. Then share the pics again.
