Re: Honda XL 600 LM 1985-1989 PD04,Resistor blown up and losted
a guy on another forum thinks the chip is based on this:
a guy on another forum thinks the chip is based on this:
-
-
Re: Honda XL 600 LM 1985-1989 PD04,Resistor blown up and losted

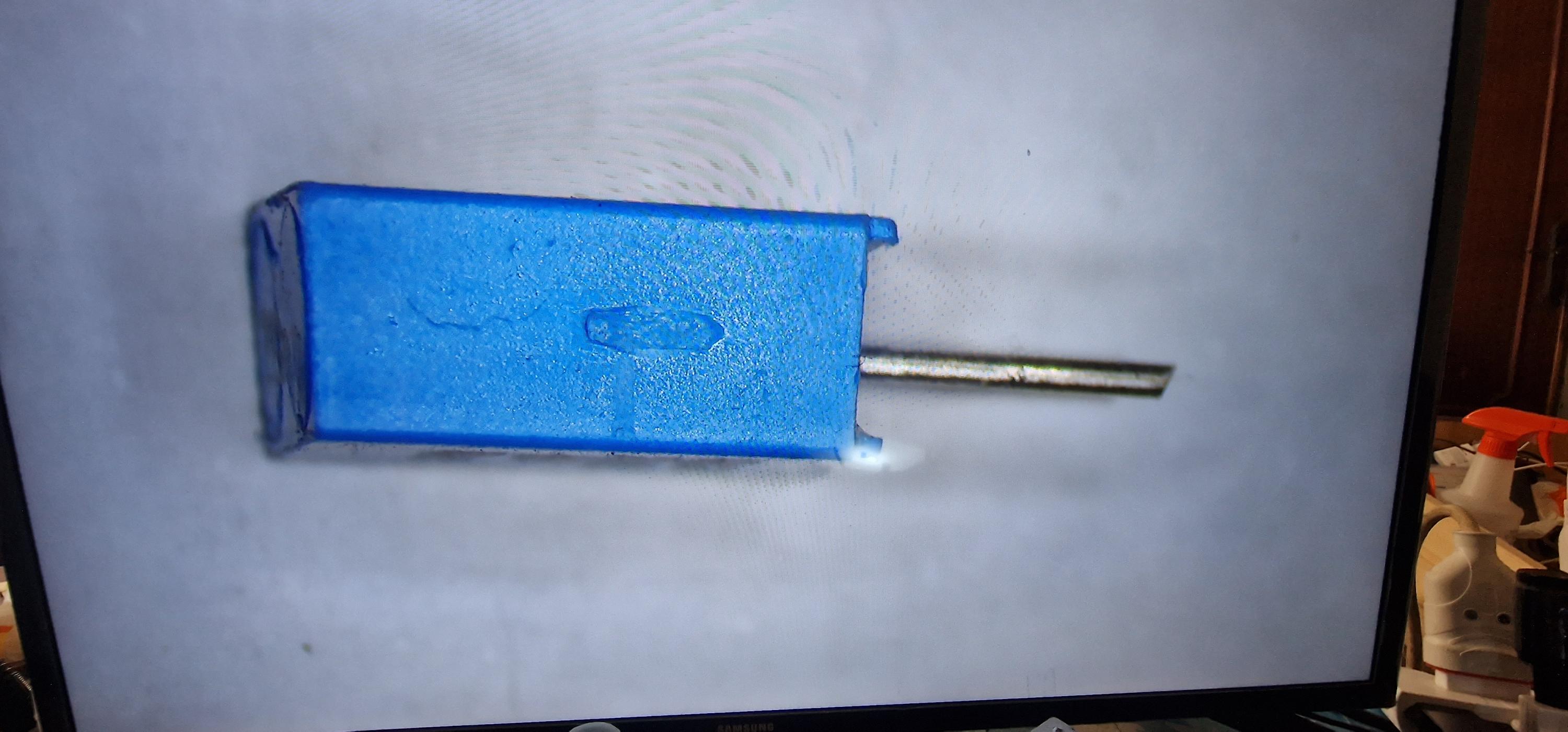

Guys how's it going? I hope you are doing well. Anyway I received the capacitor 220uf 63v but is without mark of negative leg.in one of the side it a stranger mark but I don't know if it's a negative side. I will show you on the picture thank you for your help 👍Attached Filesif you find these attachements useful please consider making a small donation to the site
Comment
-
-
Re: Honda XL 600 LM 1985-1989 PD04,Resistor blown up and losted
film caps arent polarised, you can put it either way
Comment
-
Re: Honda XL 600 LM 1985-1989 PD04,Resistor blown up and losted
Note also, that the tachometer circuit integrates primary circuit pulses from the magneto ignition system. These systems will have high voltage spikes, up to several hundred volts. There will be a diode, zener usually, on the tach board which limits voltage after the signal has passed through an input current limiting resistor. Verify that the diode is good - I've seen a few that failed shorted.Comment
-
