How to use TL866A extend cable?

Collapse
X

  • Time
  • Show
Clear All
new posts
  • capwizard
    Badcaps Legend
    • Jun 2016
    • 1991
    • USA

    #1

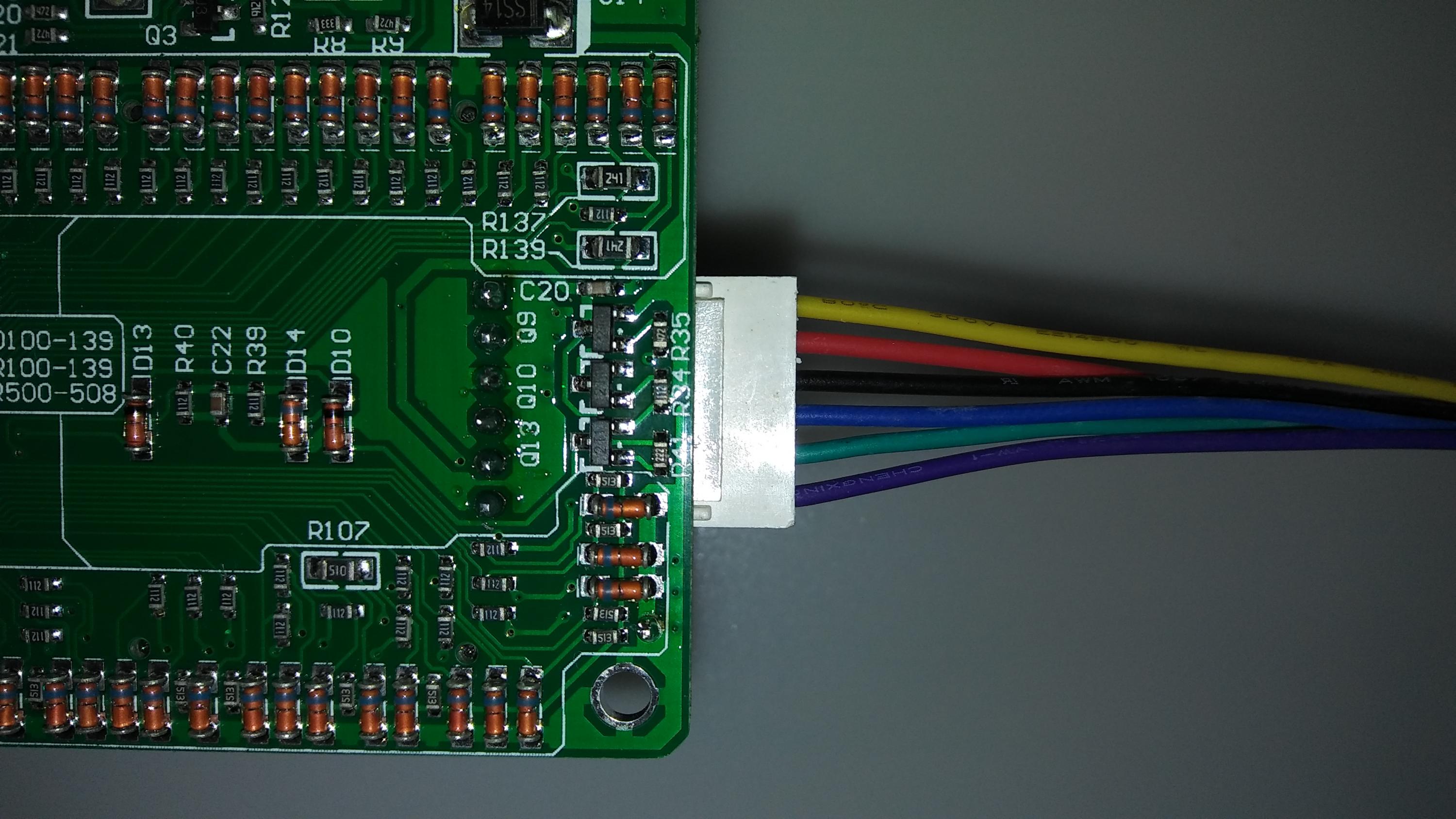

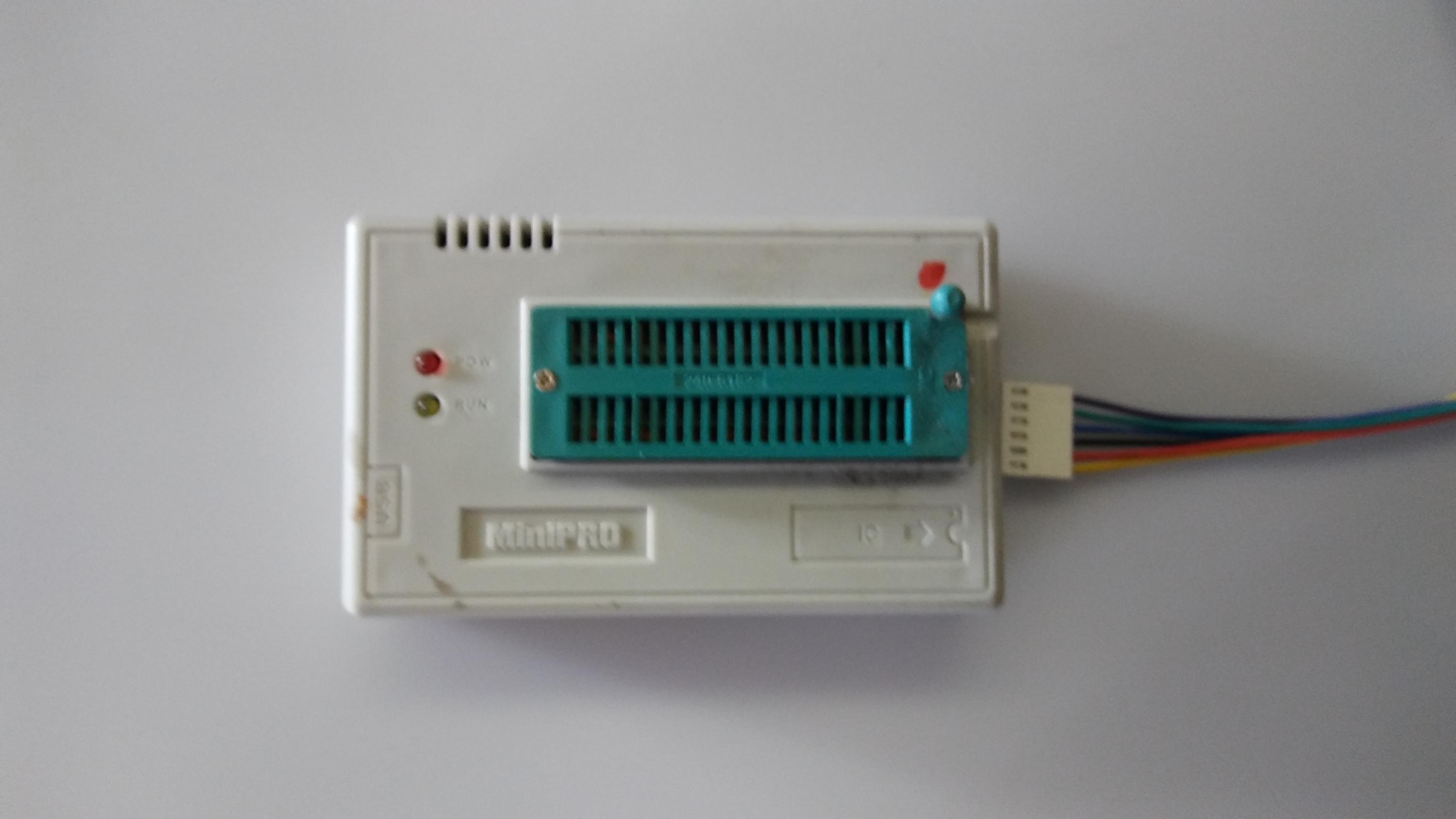

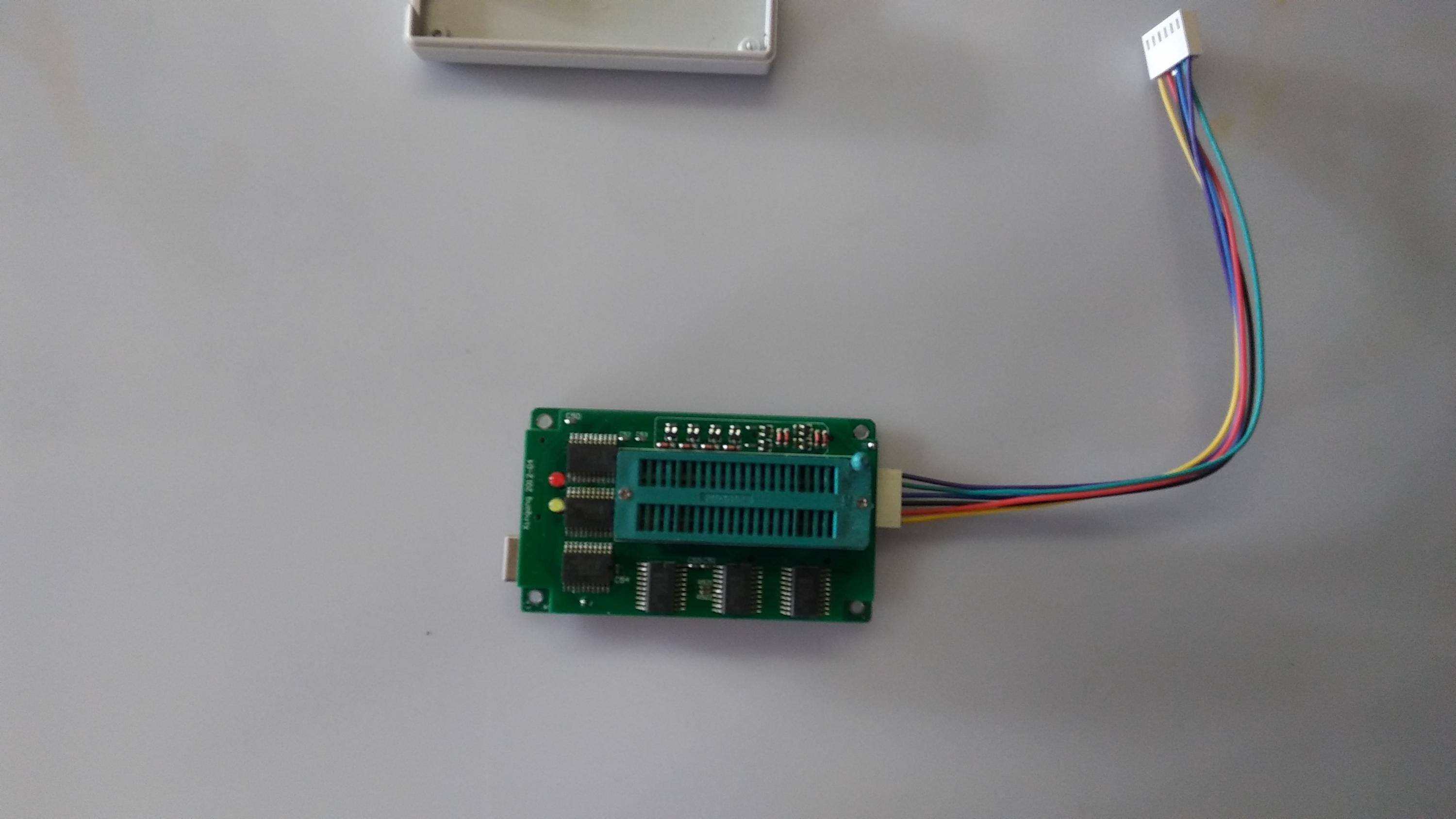

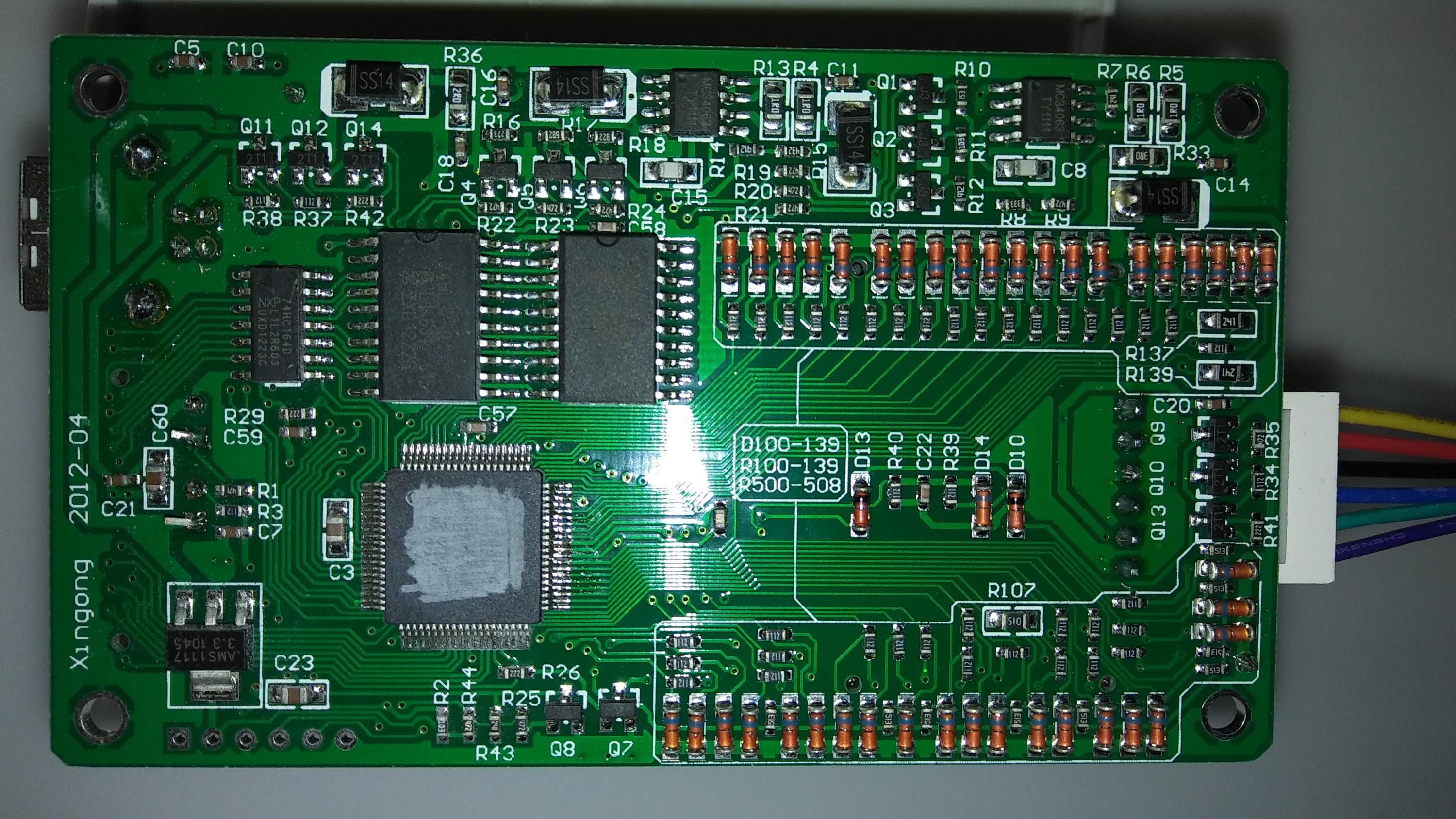

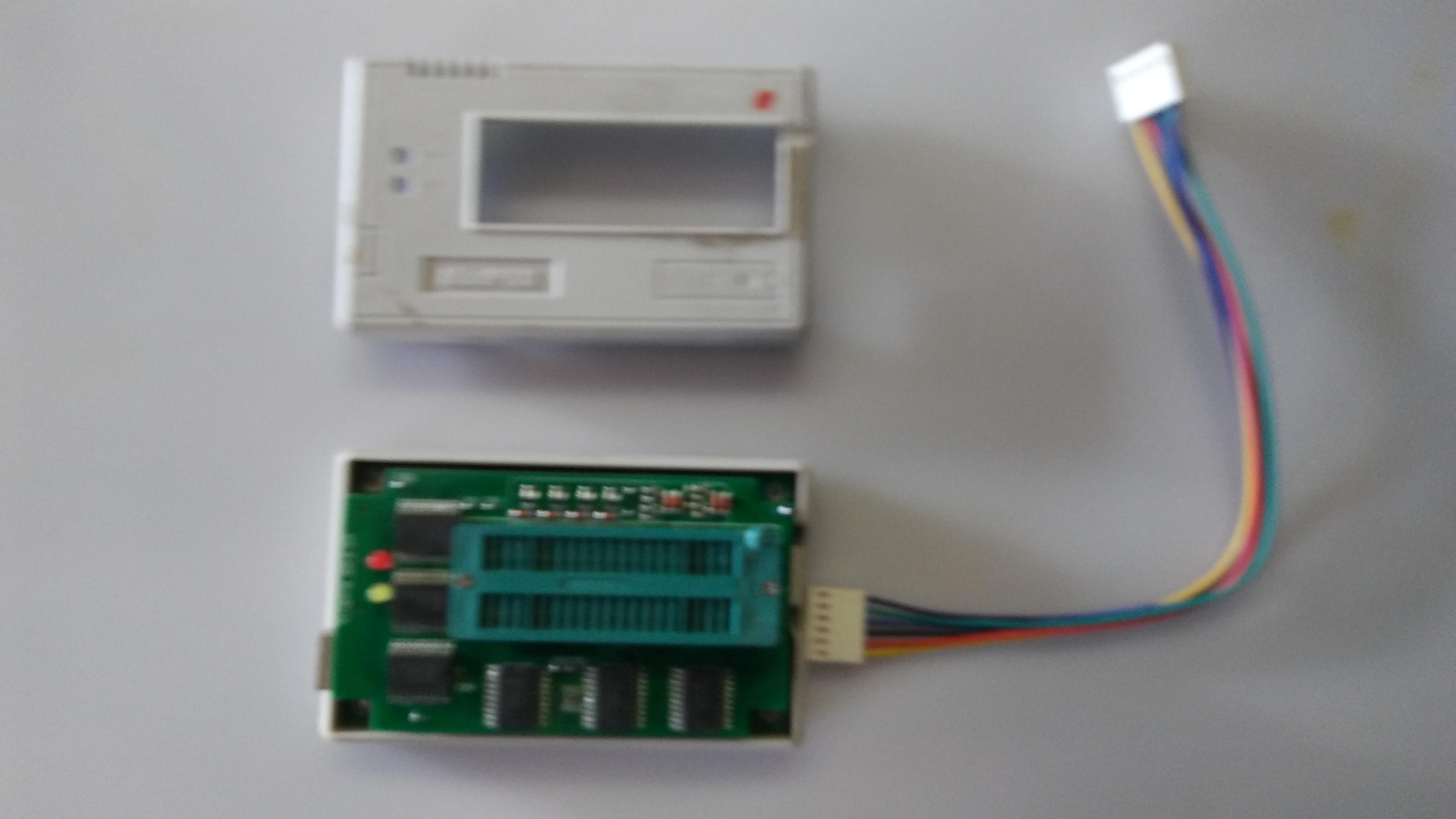

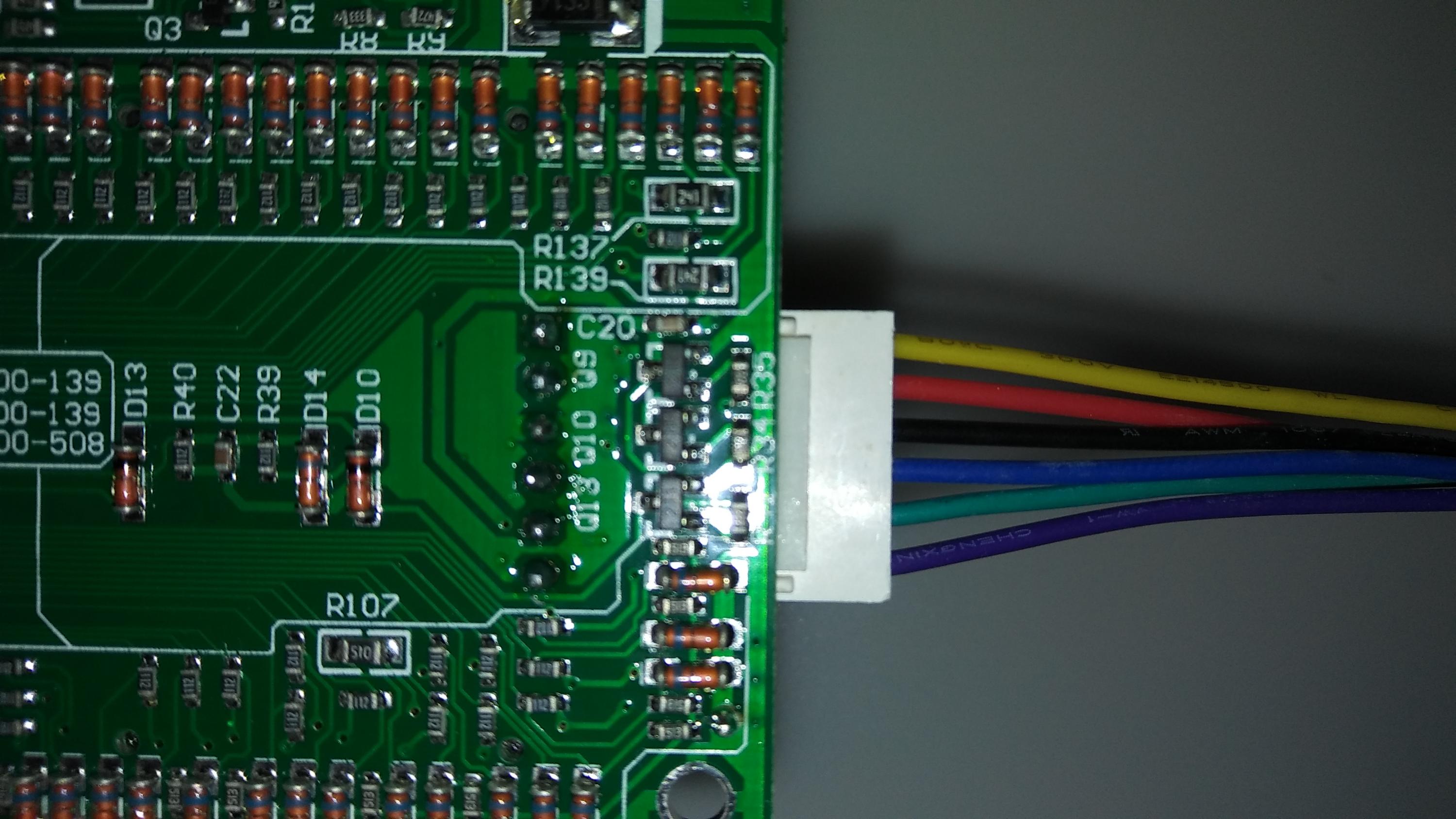

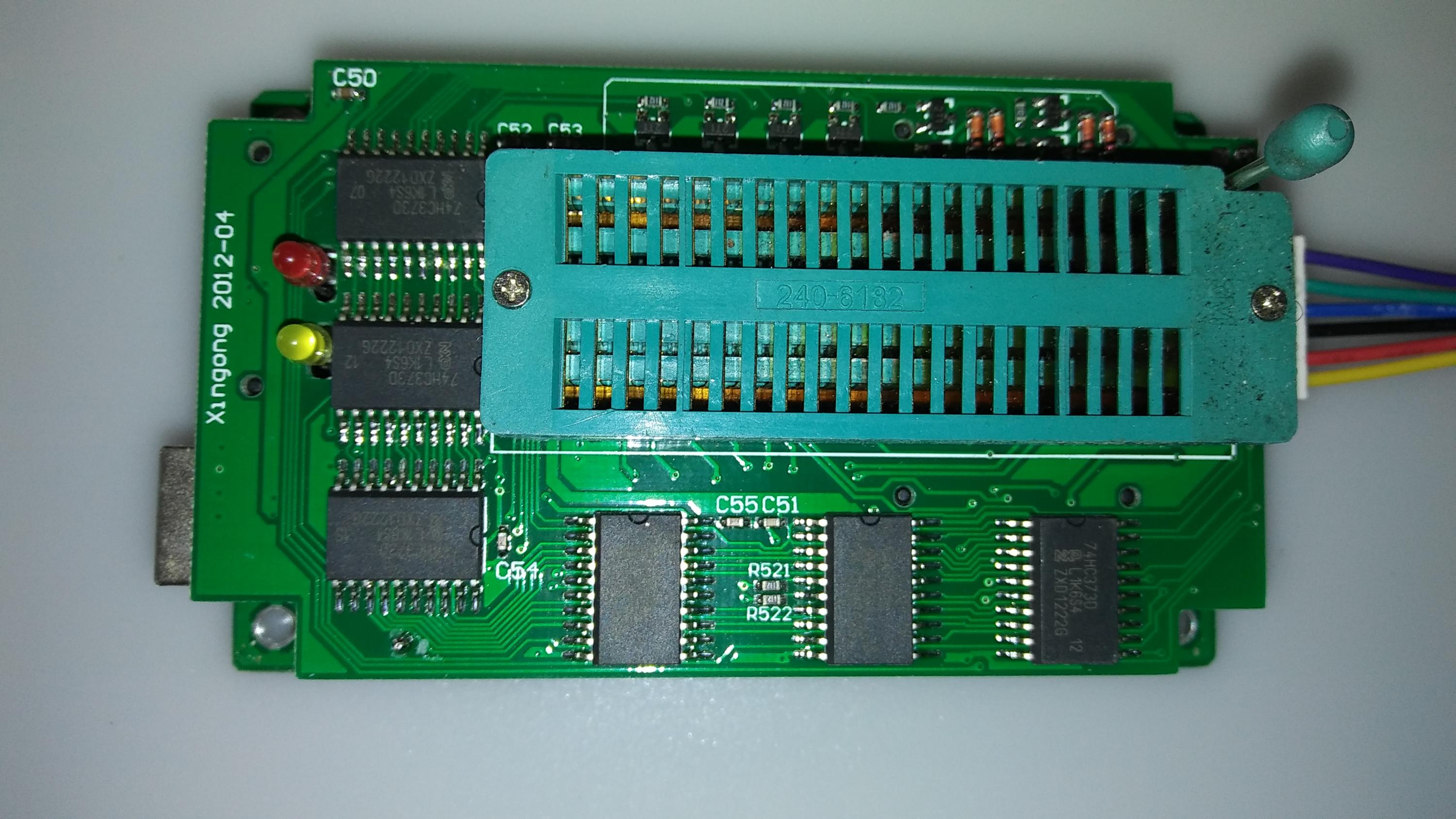

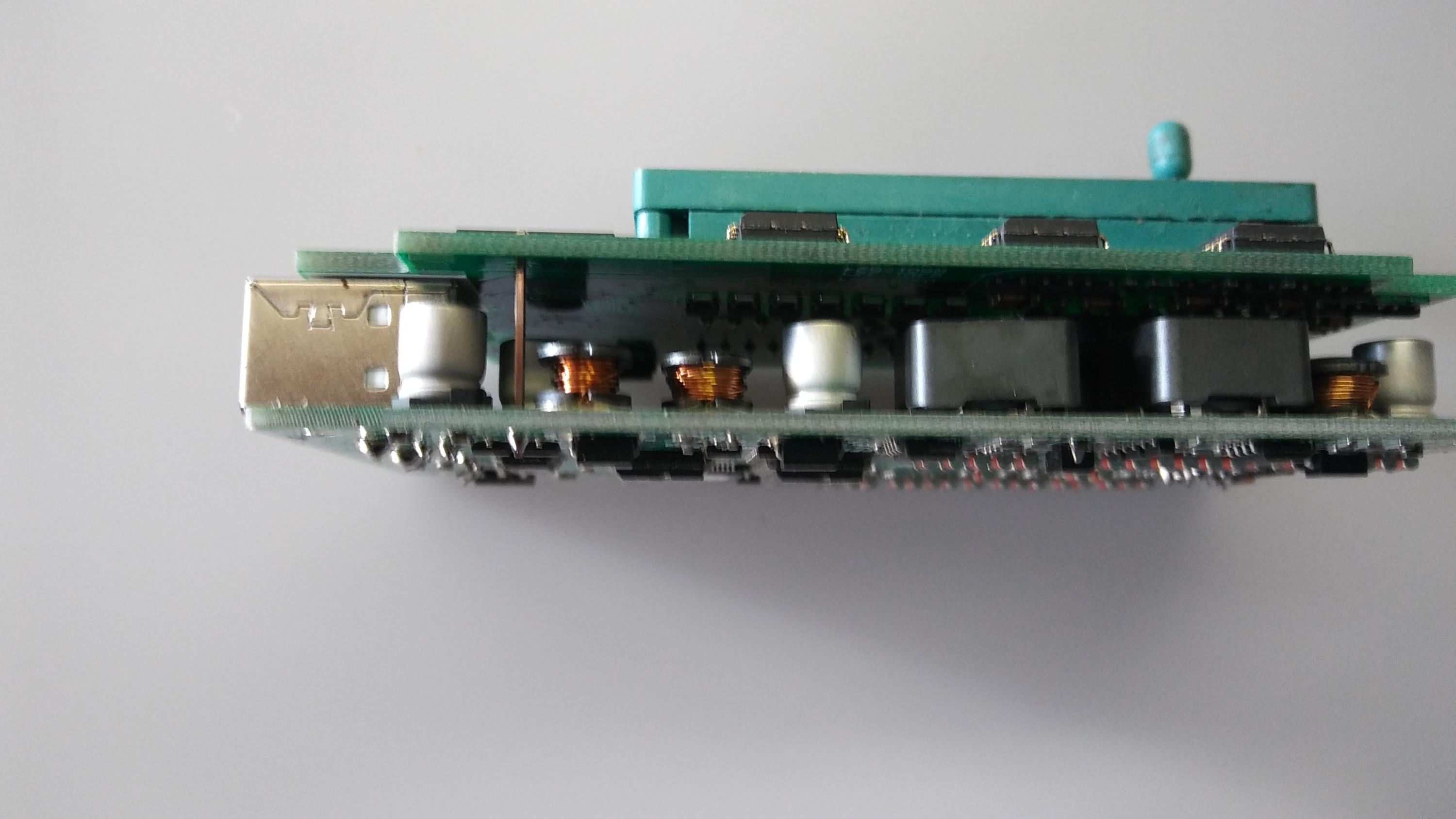

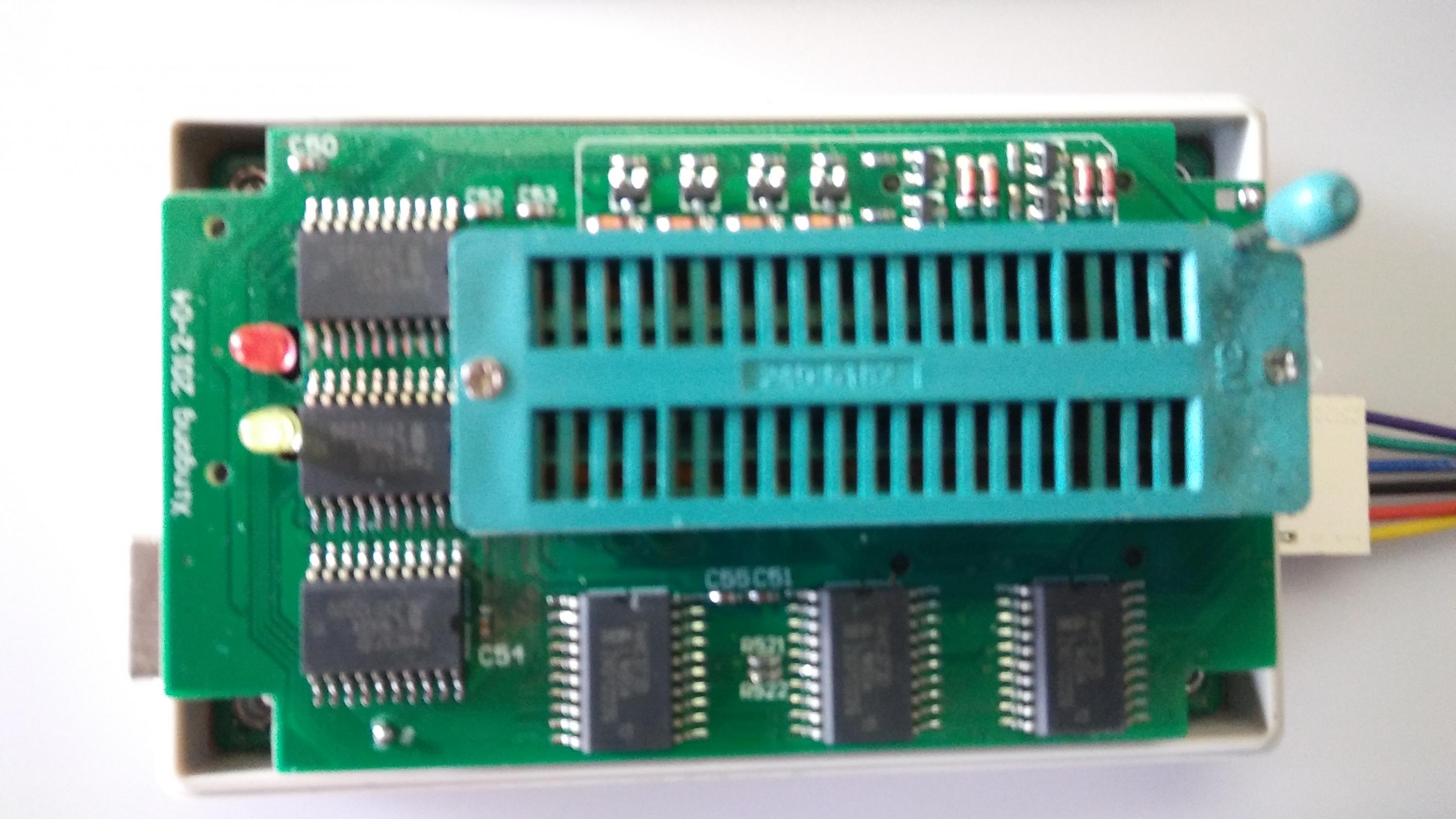

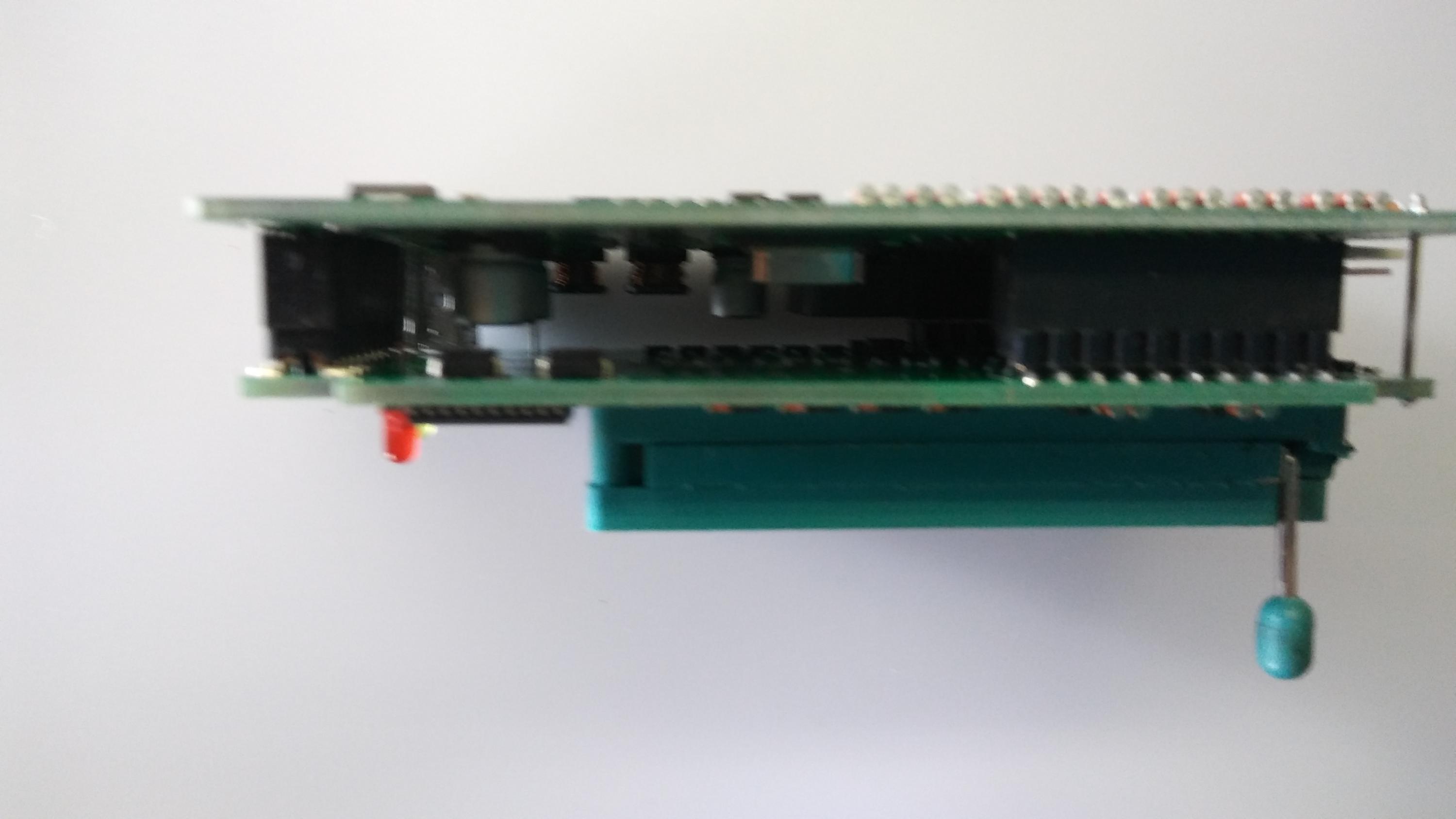

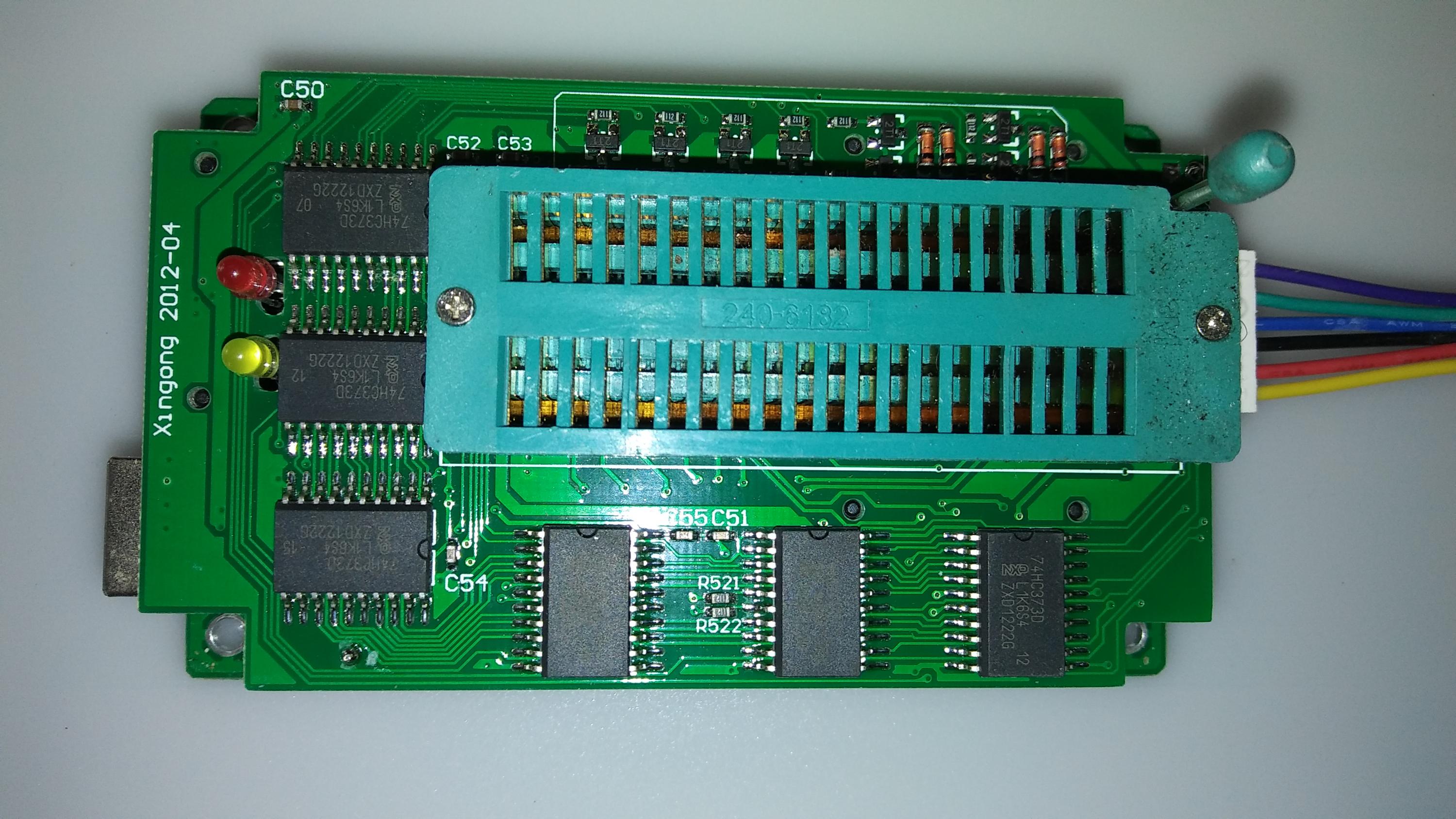

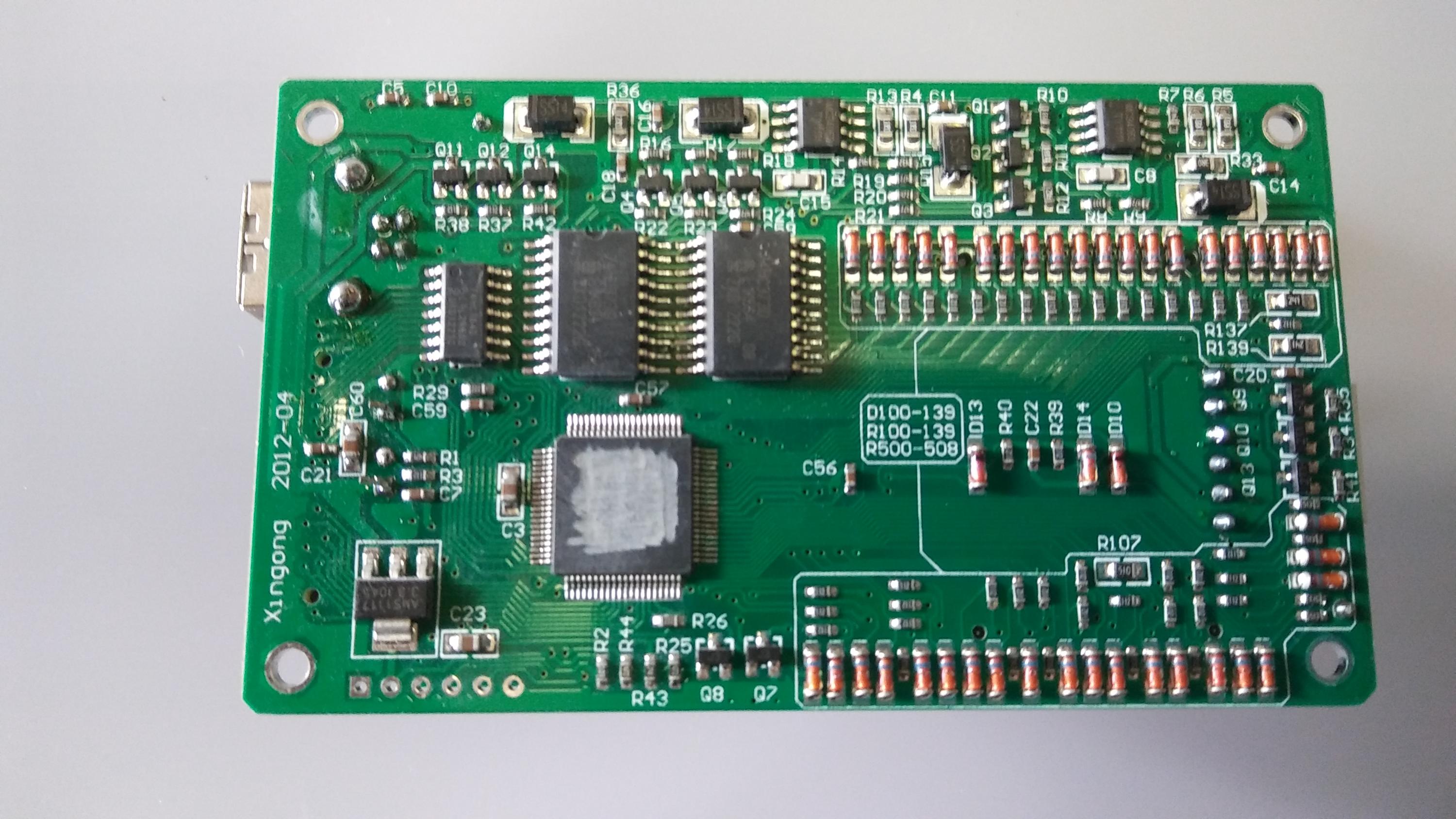

    How to use TL866A extend cable?

    How to use TL866A extend cable?
    Attached Files
    Last edited by capwizard; 01-28-2017, 10:12 AM.
  • sam_sam_sam
    Badcaps Legend
    • Jul 2011
    • 6037
    • USA

    #2
    Re: How to use TL866A extend cable?

    Take a photo of the end of the connector and call Digikey tech support and they can help you with it just make sure that you take real good close photos of each end connector

    I have done this myself before and have good results

    I hope this helps

    Comment

    • keeney123
      Lauren
      • Sep 2014
      • 2536
      • United States

      #3
      Re: How to use TL866A extend cable?

      Originally posted by capwizard
      How to use TL866A extend cable?


      I do not know fully software wise, but it seems you can use this on a chip with 6 pins. They do make up to 40 pin ones. You will need what we use to call a dip clip to attach the wires too and the clip goes on the chip on a board you want to program. I would think the board would have no power on it and you would either program it through a computer connected to the USB or it might be possible to program it from a programmed IC in the TL866A

      Comment

      • redwire
        Badcaps Legend
        • Dec 2010
        • 3906
        • Canada

        #4
        Re: How to use TL866A extend cable?

        I have this TL866 schematic, but not sure if the "CS" or "A" version.
        I guess you can update its bootloader through 6-pin J1, and I do not know about ICP of other chips. It's a basic serial port with no buffers/ESD protection etc.
        Attached Files

        Comment

        • keeney123
          Lauren
          • Sep 2014
          • 2536
          • United States

          #5
          Re: How to use TL866A extend cable?

          Here is some more information on the serial port.


          https://cdn.badcaps-static.com/pdfs/...c85d87d8c0.pdf

          Comment

          • capwizard
            Badcaps Legend
            • Jun 2016
            • 1991
            • USA

            #6
            Re: How to use TL866A extend cable?

            Thank you guys, It is called MiniPro TL866 ICSP In circuit programming cable!

            I found it!

            PIC16F877A IC is used for this program demo. In circuit programming can be done on Microcontrollers leaving the target chip no board itself. Its amazingly powerful programmer.

            https://alselectro.wordpress.com/201...minipro-866-a/

            Universal Programmer Minipro ICSP model
            https://www.youtube.com/watch?v=9BOJvGS2t4k

            http://www.eevblog.com/forum/blog/ee...er-review/500/

            More:
            EEVblog #411 - MiniPro TL866 Universal Programmer Review
            https://www.youtube.com/watch?v=FLG03f_ua5g

            conversion minipro TL866CS to TL866A
            https://www.youtube.com/watch?v=qUDZgY7CIbU

            Umbau Programmer TL866CS auf TL866A
            https://circuit-board.de/forum/index...CS-auf-TL866A/

            TL866 USB High Performance Programmer
            http://www.autoelectric.cn/en/TL866_main.html
            Last edited by capwizard; 01-30-2017, 11:09 AM.

            Comment

            • capwizard
              Badcaps Legend
              • Jun 2016
              • 1991
              • USA

              #7
              Re: How to use TL866A extend cable?

              READING BARE NAND FLASH CHIPS WITH A MICROCONTROLLER
              http://hackaday.com/2012/09/20/readi...crocontroller/

              SmartMedia Format Introduction
              http://hackaday.com/2012/09/20/readi...crocontroller/

              Arduino Mega: Direct R/W of a Nand Flash memory chip
              http://hardcoreforensics.com/blog/20...h-memory-chip/

              FT2232H NAND flash reader - Hardware
              http://spritesmods.com/?f=had&art=ftdinand

              Comment

              • capwizard
                Badcaps Legend
                • Jun 2016
                • 1991
                • USA

                #8
                Re: How to use TL866A extend cable?

                My question is how the TV manufacturers duplicate the EEPROMs is before it put on the PCB or after? then they use Rx Tx pins on PCB or USB port to write the firmwares to the EEPROMs ?
                Last edited by capwizard; 01-31-2017, 08:41 AM.

                Comment

                • keeney123
                  Lauren
                  • Sep 2014
                  • 2536
                  • United States

                  #9
                  Re: How to use TL866A extend cable?

                  Originally posted by capwizard
                  My question is how the TV manufacturers duplicate the EEPROMs is before it put on the PCB or after? then they use Rx Tx pins on PCB or USB port to write the firmwares to the EEPROMs ?

                  I would think it would be dependent on the TV. If Wi-Fi they could use that. It most likely is software controlled. You would have to know there software routine to get into this program. Also, it is most likely easier to program the eeproms before they are put in the board. They would have one master chip and a programmer with several ports/sockets for chips to be programmed. The programmer would verify that each chip was program correctly by checksum. So such a programmer could program 25 eeproms in a matter of a few minutes and they would be verified good.

                  Comment
