    Sub Anisotropic conductive film (ACF) with solider power?

    Why we need to use expensive ACF types, can we Sub Anisotropic conductive film type with finest solder powder pastes distribute evenly with air blush or on A type after dry out, it is the home made ACF type?

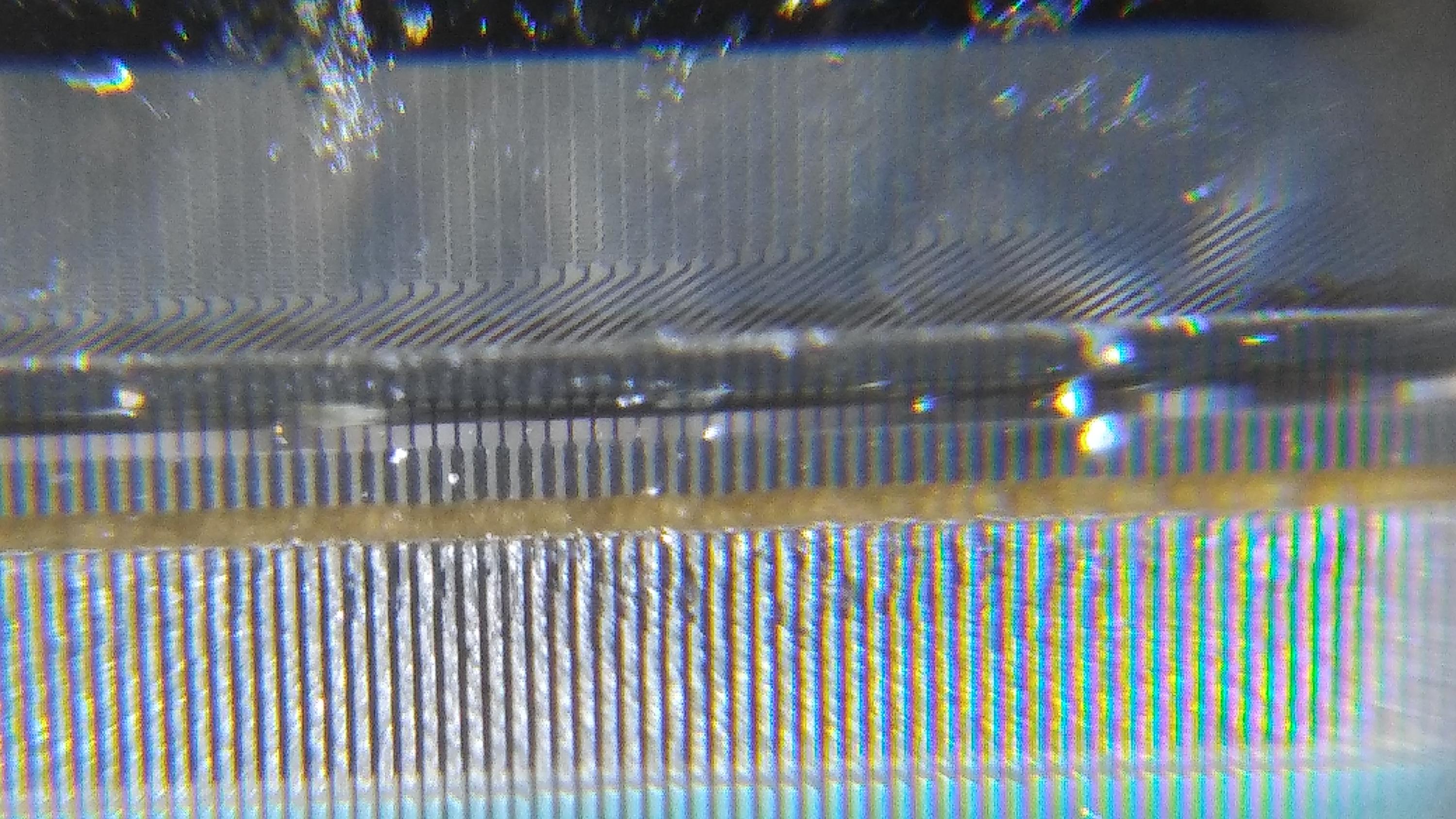

    PS: picture 2 shows the lcd's screen RGB dots

    more videos

    Rep ecrane,LCD Bonding
    https://www.youtube.com/watch?v=2Tg5zIY5les

    Low cost acf bonding machine
    https://www.youtube.com/watch?v=QuZtf2U0c1I

    Home made LCD LED Bonding Machine
    https://www.youtube.com/watch?v=ohBzUsMPSg8
    Attached Files
    Last edited by capwizard; 01-18-2017, 11:25 AM.
    Tags: None
    • capwizard
      Badcaps Legend
      • Jun 2016
      • 1991
      • USA
      #2
      Re: Sub Anisotropic conductive film (ACF) with solider power?

      The Hitachi AC-7206U-18 Anisotropic conductive film (ACF)


      ___________________________
      Inauguration.... I bet ju.............the First Lady gonna wears white dresses !
      Attached Files
