Capacitors in schematic question

Collapse
X
Collapse

  • Page of 2
  • Time
  • Show
Clear All
new posts
Previous 1 2 template Next
  • caphair
    Badcaps Legend
    • Nov 2011
    • 1249
    #21
    Re: Capacitors in schematic question

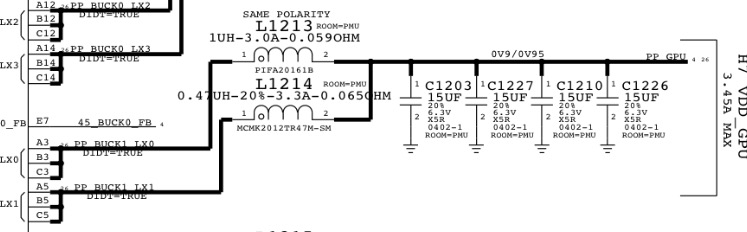

    In this schematic are L1213 and L1214 connected in series with the caps or across them? In other words if I measure across the caps would I get a 0 ohm reading or not? Trying to figure out if the caps are shorted or if I'm reading the inductor resistance across them
