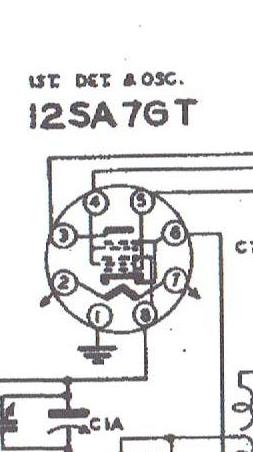

hi, can some one tell what the small arrows on this tube pinout are or what there for. thanks, dave
Attached Files
-
-
Re: tube pinouts
Goes to the 12V heater power source...

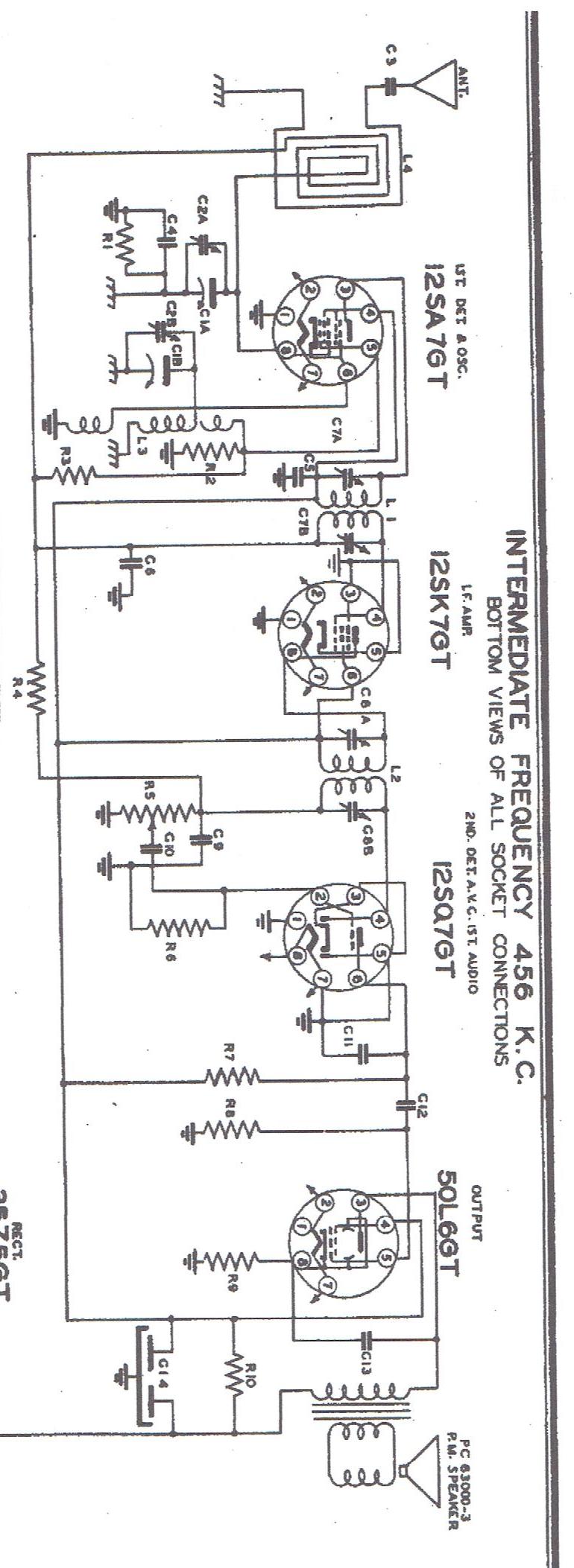

Looks like an AM superhet 5-tube radio. Usually the heater in these tubes are hooked up in series as depicted by a heater string elsewhere on the schematic that might have been cut off from the submitted scan.Last edited by eccerr0r; 12-08-2015, 02:45 PM. -
Re: tube pinouts
Thank youComment
-
Re: tube pinouts
Vacuum tube data sheets:
http://frank.pocnet.net/
http://www.tubedata.org/
http://www.tubebooks.org/tube_data.htm
http://tdsl.duncanamps.com/Never stop learning
