Diode marked as "E57".........not able to find it by reference

06-14-2025, 09:56 AM

Hi:

I have what it might seem a zener diode. It's marked as E57, but I haven't found any reference that might match my observations.

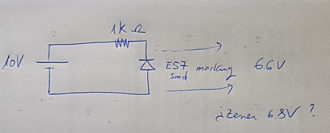

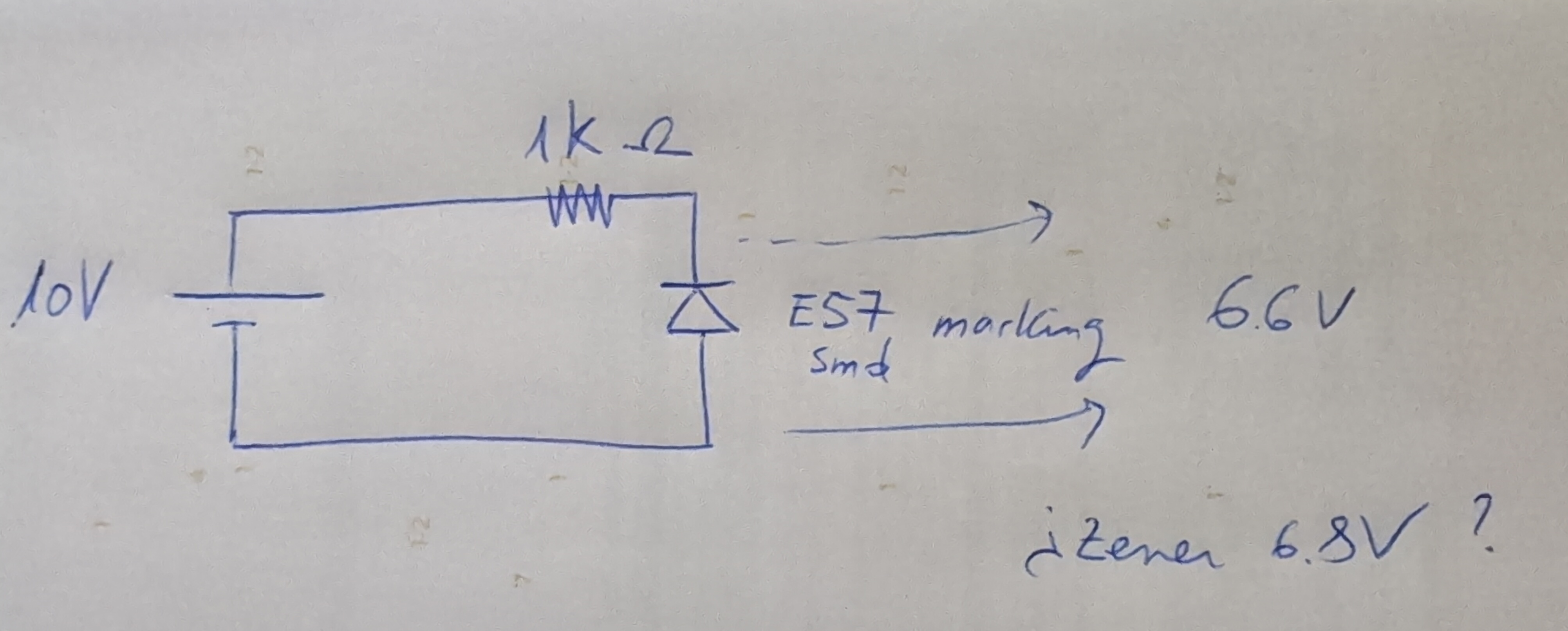

I've took one from the same circuit and tested isolated with the power supply and a 1k resistor. with 10V, the possible zener stays at 6.6V.

It seems a SOD123 package. It measures (2.6mm x 1.6 mm).

Any idea? it's a 6.6V zener?

Attached Files
Tags: None
truclacicr

Badcaps Veteran

Join Date: Apr 2019

Posts: 296

Country: australia
#2

06-14-2025, 12:27 PM

https://ok.100y.com.tw/Goods/35473 (MMSZ5235BT1G)

https://www.mpartn.com/wp-content/up...SZ5235BT1G.jpg (photo)

https://www.onsemi.com/download/data...z5221bt1-d.pdf (datasheet)

Last edited by truclacicr; 06-14-2025, 12:30 PM.
Comment
Francesc V.

Tempus fugit

Join Date: Nov 2022

Posts: 224

Country: Catalonia
#3

06-15-2025, 01:14 AM

Originally posted by truclacicr

https://ok.100y.com.tw/Goods/35473 (MMSZ5235BT1G)

https://www.mpartn.com/wp-content/up...SZ5235BT1G.jpg (photo)

https://www.onsemi.com/download/data...z5221bt1-d.pdf (datasheet)

Thanks!!
Comment
