    Re: ESR meter upgrades

    Thanks stj yes i have saw that video already it looks a good tool and thanks for the link i might consider the upgrades at some points i need to collect some more projects too work on as have none at the minute (well one a psp needs a replacement shell fitting but the china one provided looks rubbish quility so been putting this job off)
    Last edited by vinceroger69; 07-23-2016, 07:37 AM.

    Comment


      Re: ESR meter upgrades

      Originally posted by vinceroger69 View Post
      I saw your post on eevblog are you programming the chip on the esr pcb? though a fitted header?
      Dear Vince thank you

      I removed the chip from the transistor tester and inserted it into a PCB

      I'm programing the chip using an USBASP and the procedure as described in here

      http://www.eevblog.com/forum/testgear/$20-lcr-esr-transistor-checker-project/msg810893/#msg810893

      I will retry now with the code provided by sjt and will right away post results
      Again many thanks to you for refering me here and sjt and other members helping me with this issue

      Belen

      Comment


        Re: ESR meter upgrades

        Dear guys

        I got somehow a success

        I was able to upload the firmware and now the display stays lit ans the led too but still nothing shows on the display just blank

        This was my result o the programming
        Code:
        C:\AVR>avrdude -c USBasp -P usb -p m328p -U flash:w:Code.HEX \-U eeprom:w:Data.H
        EX \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0xfc:m

        avrdude: AVR device initialized and ready to accept instructions

        Reading | ################################################## | 100% 0.01s

        avrdude: Device signature = 0x1e950f
        avrdude: NOTE: "flash" memory has been specified, an erase cycle will be perform
        ed
                 To disable this feature, specify the -D option.
        avrdude: erasing chip
        avrdude: reading input file "Code.HEX"
        avrdude: input file Code.HEX auto detected as Intel Hex
        avrdude: writing flash (29702 bytes):

        Writing | ################################################## | 100% 18.81s

        avrdude: 29702 bytes of flash written
        avrdude: verifying flash memory against Code.HEX:
        avrdude: load data flash data from input file Code.HEX:
        avrdude: input file Code.HEX auto detected as Intel Hex
        avrdude: input file Code.HEX contains 29702 bytes
        avrdude: reading on-chip flash data:

        Reading | ################################################## | 100% 11.40s

        avrdude: verifying ...
        avrdude: 29702 bytes of flash verified

        avrdude: safemode: Fuses OK (E:01, H:DF, L:F7)

        avrdude done.  Thank you.

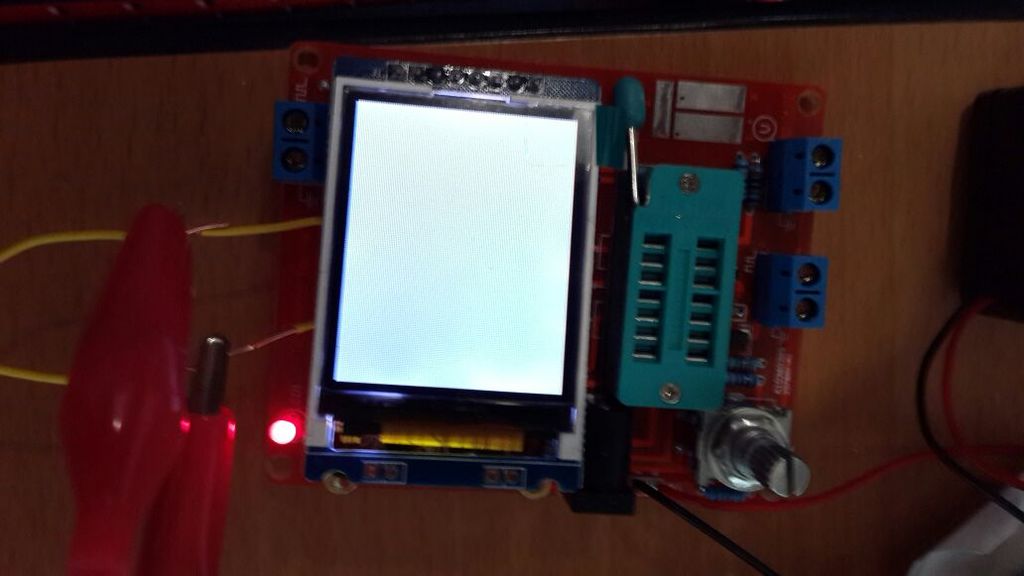

        and this is how it is now



        I'm sorry for the clips on the side but those were the cables I soldered to be able to attach and detach the crystal I did not knew I could use a 16 mhz one until today and I had already took that one out.
        Meanwhile I receive an answer I'm going to solder the crystal back onto the tester.

        Thank you all again
        Belen
        Attached Files
        Last edited by Per Hansson; 06-16-2022, 02:02 PM. Reason: Added CODE tags, uploaded offsite image

        Comment


          Re: ESR meter upgrades

          go do it again - the fuses didnt get programmed.

          copy & paste from this:
          Attached Files

          Comment


            Re: ESR meter upgrades

            Dear

            I reflashed and now the display stays lit for about 4 seconds and then display and led turns off.

            Keep in mind that my files ransistorTester.hex are from




            Code:
            C:\AVR>avrdude -c USBasp -P usb -p m328p -U flash:w:TransistorTester.hex \-U eep
            rom:w:TransistorTester.eep \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0xf
            c:m

            avrdude: AVR device initialized and ready to accept instructions

            Reading | ################################################## | 100% 0.01s

            avrdude: Device signature = 0x1e950f
            avrdude: NOTE: "flash" memory has been specified, an erase cycle will be perform
            ed
                     To disable this feature, specify the -D option.
            avrdude: erasing chip
            avrdude: reading input file "TransistorTester.hex"
            avrdude: input file TransistorTester.hex auto detected as Intel Hex
            avrdude: writing flash (29952 bytes):

            Writing | ################################################## | 100% 19.04s

            avrdude: 29952 bytes of flash written
            avrdude: verifying flash memory against TransistorTester.hex:
            avrdude: load data flash data from input file TransistorTester.hex:
            avrdude: input file TransistorTester.hex auto detected as Intel Hex
            avrdude: input file TransistorTester.hex contains 29952 bytes
            avrdude: reading on-chip flash data:

            Reading | ################################################## | 100% 10.39s

            avrdude: verifying ...
            avrdude: 29952 bytes of flash verified

            avrdude: safemode: Fuses OK (E:01, H:DF, L:F7)

            avrdude done.  Thank you.
            Last edited by Per Hansson; 07-23-2016, 12:49 PM. Reason: Added CODE tags

            Comment


              Re: ESR meter upgrades

              it's not programming your H & E fuses.

              Comment


                Re: ESR meter upgrades

                try just typing these individually:

                avrdude -c USBasp -P usb -p m328p -U lfuse:w:0xf7:m

                avrdude -c USBasp -P usb -p m328p -U hfuse:w:0xd9:m

                avrdude -c USBasp -P usb -p m328p -U efuse:w:0xfc:m

                Comment


                  Re: ESR meter upgrades

                  Would you advice for me to use a blank chip?
                  Maybe the chip is broken
                  How do I verify if it's programming the fuses or not?

                  Thanks again
                  Belen

                  Comment


                    Re: ESR meter upgrades

                    Code:
                    C:\AVR>avrdude -c USBasp -P usb -p m328p -U lfuse:w:0xf7:m

                    avrdude: AVR device initialized and ready to accept instructions

                    Reading | ################################################## | 100% 0.01s

                    avrdude: Device signature = 0x1e950f
                    avrdude: reading input file "0xf7"
                    avrdude: writing lfuse (1 bytes):

                    Writing | ################################################## | 100% 0.01s

                    avrdude: 1 bytes of lfuse written
                    avrdude: verifying lfuse memory against 0xf7:
                    avrdude: load data lfuse data from input file 0xf7:
                    avrdude: input file 0xf7 contains 1 bytes
                    avrdude: reading on-chip lfuse data:

                    Reading | ################################################## | 100% 0.00s

                    avrdude: verifying ...
                    avrdude: 1 bytes of lfuse verified

                    avrdude: safemode: Fuses OK (E:01, H:DF, L:F7)

                    avrdude done.  Thank you.

                    Code:
                    C:\AVR>avrdude -c USBasp -P usb -p m328p -U hfuse:w:0xd9:m

                    avrdude: AVR device initialized and ready to accept instructions

                    Reading | ################################################## | 100% 0.01s

                    avrdude: Device signature = 0x1e950f
                    avrdude: reading input file "0xd9"
                    avrdude: writing hfuse (1 bytes):

                    Writing | ################################################## | 100% 0.01s

                    avrdude: 1 bytes of hfuse written
                    avrdude: verifying hfuse memory against 0xd9:
                    avrdude: load data hfuse data from input file 0xd9:
                    avrdude: input file 0xd9 contains 1 bytes
                    avrdude: reading on-chip hfuse data:

                    Reading | ################################################## | 100% 0.00s

                    avrdude: verifying ...
                    avrdude: 1 bytes of hfuse verified

                    avrdude: safemode: Fuses OK (E:01, H:D9, L:F7)

                    avrdude done.  Thank you.

                    Code:
                    C:\AVR>avrdude -c USBasp -P usb -p m328p -U efuse:w:0xfc:m

                    avrdude: AVR device initialized and ready to accept instructions

                    Reading | ################################################## | 100% 0.01s

                    avrdude: Device signature = 0x1e950f
                    avrdude: reading input file "0xfc"
                    avrdude: writing efuse (1 bytes):

                    Writing |                                                    | 0% 0.00s ***faile
                    d;
                    Writing | ################################################## | 100% 0.04s

                    avrdude: 1 bytes of efuse written
                    avrdude: verifying efuse memory against 0xfc:
                    avrdude: load data efuse data from input file 0xfc:
                    avrdude: input file 0xfc contains 1 bytes
                    avrdude: reading on-chip efuse data:

                    Reading | ################################################## | 100% 0.00s

                    avrdude: verifying ...
                    avrdude: verification error, first mismatch at byte 0x0000
                             0x04 != 0xfc
                    avrdude: verification error; content mismatch

                    avrdude: safemode: efuse changed! Was fc, and is now 4
                    Would you like this fuse to be changed back? [y/n] y
                    And it does nothing else...

                    APPARENTLY last fuse can not be written

                    I'm going to use a blank ship and I will report back
                    Thanks again
                    Last edited by Per Hansson; 07-23-2016, 12:51 PM. Reason: Added CODE tags

                    Comment


                      Re: ESR meter upgrades

                      This is crazy
                      I have changed for a blank chip and now it says
                      Code:
                      C:\AVR>avrdude -c USBasp -P usb -p m328p -U flash:w:TransistorTester.hex \-U eep
                      rom:w:TransistorTester.eep \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0xf
                      c:m

                      avrdude: error: programm enable: target doesn't answer. 1
                      avrdude: initialization failed, rc=-1
                               Double check connections and try again, or use -F to override
                               this check.


                      avrdude done.  Thank you.
                      I'm going to use an Arduino as ISP programmer and report back
                      Last edited by Per Hansson; 07-23-2016, 12:51 PM. Reason: Added CODE tags

                      Comment


                        Re: ESR meter upgrades

                        I'm getting a bit frustrated in here...
                        With arduino as ISP programmer both the chip that came with the tester and a new black chip I get this

                        Code:
                        C:\Program Files (x86)\Arduino\hardware\tools\avr\bin>avrdude -C ../etc/avrdude.
                        conf -c avrisp -P COM3 -b 19200 -p m8 -U flash:w:TransistorTester.hex \-U eeprom
                        :w:TransistorTester.eep \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0xfc:m


                        avrdude: AVR device initialized and ready to accept instructions

                        Reading | ################################################## | 100% 0.04s

                        avrdude: Device signature = 0x000000 (retrying)

                        Reading | ################################################## | 100% 0.03s

                        avrdude: Device signature = 0x000000 (retrying)

                        Reading | ################################################## | 100% 0.04s

                        avrdude: Device signature = 0x000000
                        avrdude: Yikes!  Invalid device signature.
                                 Double check connections and try again, or use -F to override
                                 this check.


                        avrdude done.  Thank you.
                        Last edited by Per Hansson; 07-23-2016, 12:52 PM. Reason: Added CODE tags

                        Comment


                          Re: ESR meter upgrades

                          Originally posted by bmht View Post
                          I'm getting a bit frustrated in here...
                          With arduino as ISP programmer both the chip that came with the tester and a new black chip I get this

                          C:\Program Files (x86)\Arduino\hardware\tools\avr\bin>avrdude -C ../etc/avrdude.
                          conf -c avrisp -P COM3 -b 19200 -p m8 -U flash:w:TransistorTester.hex \-U eeprom
                          :w:TransistorTester.eep \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0xfc:m


                          avrdude: AVR device initialized and ready to accept instructions

                          Reading | ################################################## | 100% 0.04s

                          avrdude: Device signature = 0x000000 (retrying)

                          Reading | ################################################## | 100% 0.03s

                          avrdude: Device signature = 0x000000 (retrying)

                          Reading | ################################################## | 100% 0.04s

                          avrdude: Device signature = 0x000000
                          avrdude: Yikes! Invalid device signature.
                          Double check connections and try again, or use -F to override
                          this check.


                          avrdude done. Thank you.
                          sorry but i have not used avrdude etc yet for my ic i used a tl866 programmer the only other way that may work is adding the header and soldering wires direct to the ic socket etc, stj has some pictures regarding this as im also going to try programming this way myself in the future using avrdude etc but im reading up on the programming side of things at the minute.
                          just a thought with your crystal are you using 22pf capacitors as well? when your programming the ic
                          Last edited by vinceroger69; 07-23-2016, 10:37 AM.

                          Comment


                            Re: ESR meter upgrades

                            this is exactly the type of bullshit that happens when people try to program chips off-board instead of in-circuit.

                            btw:
                            C:\AVR>avrdude -c USBasp -P usb -p m328p -U efuse:w:0xfc:m

                            avrdude: AVR device initialized and ready to accept instructions

                            Reading | ################################################## | 100% 0.01s

                            avrdude: Device signature = 0x1e950f
                            avrdude: reading input file "0xfc"
                            avrdude: writing efuse (1 bytes):

                            Writing | | 0% 0.00s ***faile
                            d;
                            Writing | ################################################## | 100% 0.04s

                            avrdude: 1 bytes of efuse written
                            avrdude: verifying efuse memory against 0xfc:
                            avrdude: load data efuse data from input file 0xfc:
                            avrdude: input file 0xfc contains 1 bytes
                            avrdude: reading on-chip efuse data:

                            Reading | ################################################## | 100% 0.00s

                            avrdude: verifying ...
                            avrdude: verification error, first mismatch at byte 0x0000
                            0x04 != 0xfc
                            avrdude: verification error; content mismatch

                            avrdude: safemode: efuse changed! Was fc, and is now 4
                            Would you like this fuse to be changed back? [y/n] y
                            is a newer chip, 04 instead of FC is fine.

                            so with that chip, do:
                            avrdude -c USBasp -P usb -p m328p -U efuse:w:0x04:m

                            Comment


                              Re: ESR meter upgrades

                              I rebooted the computer and connected the arduino to another USB port and now I'm getting this using Arduino ISP as programmer.

                              Code:
                              C:\Program Files (x86)\Arduino\hardware\tools\avr\bin>avrdude -C ../etc/avrdude.
                              conf -c avrisp -P COM3 -b 19200 -B8 -p m8 -U flash:w:TransistorTester.hex \-U ee
                              prom:w:TransistorTester.eep \-U lfuse:w:0xf7:m \-U hfuse:w:0xd9:m \-U efuse:w:0x
                              fc:m

                              avrdude: AVR device initialized and ready to accept instructions

                              Reading | ################################################## | 100% 0.04s

                              avrdude: Device signature = 0x1e950f
                              avrdude: Expected signature for ATmega8 is 1E 93 07
                                       Double check chip, or use -F to override this check.

                              avrdude done.  Thank you.
                              Last edited by Per Hansson; 07-23-2016, 12:53 PM. Reason: Added CODE tags

                              Comment


                                Re: ESR meter upgrades

                                Originally posted by stj View Post
                                this is exactly the type of bullshit that happens when people try to program chips off-board instead of in-circuit.
                                Dear sjt I really appreciate all your help and I'm sorry if I seem stupid or dumb in here.
                                I'm trying to learn in here and I got no clue of AVR programming besides arduino. I'm learning and reading as much as I can to be able to fix this issue.

                                To be able to program the chip in circuit I believe I would either have to solder some wires to the chip or have an ICSP header on the circuit right? which I do not have in this circuit.

                                Thanks again for all your help
                                Belen
                                Last edited by Per Hansson; 07-23-2016, 12:44 PM. Reason: fixed quote

                                Comment

                                Working...
                                X
