    Schematic and software?

    Dear Members,

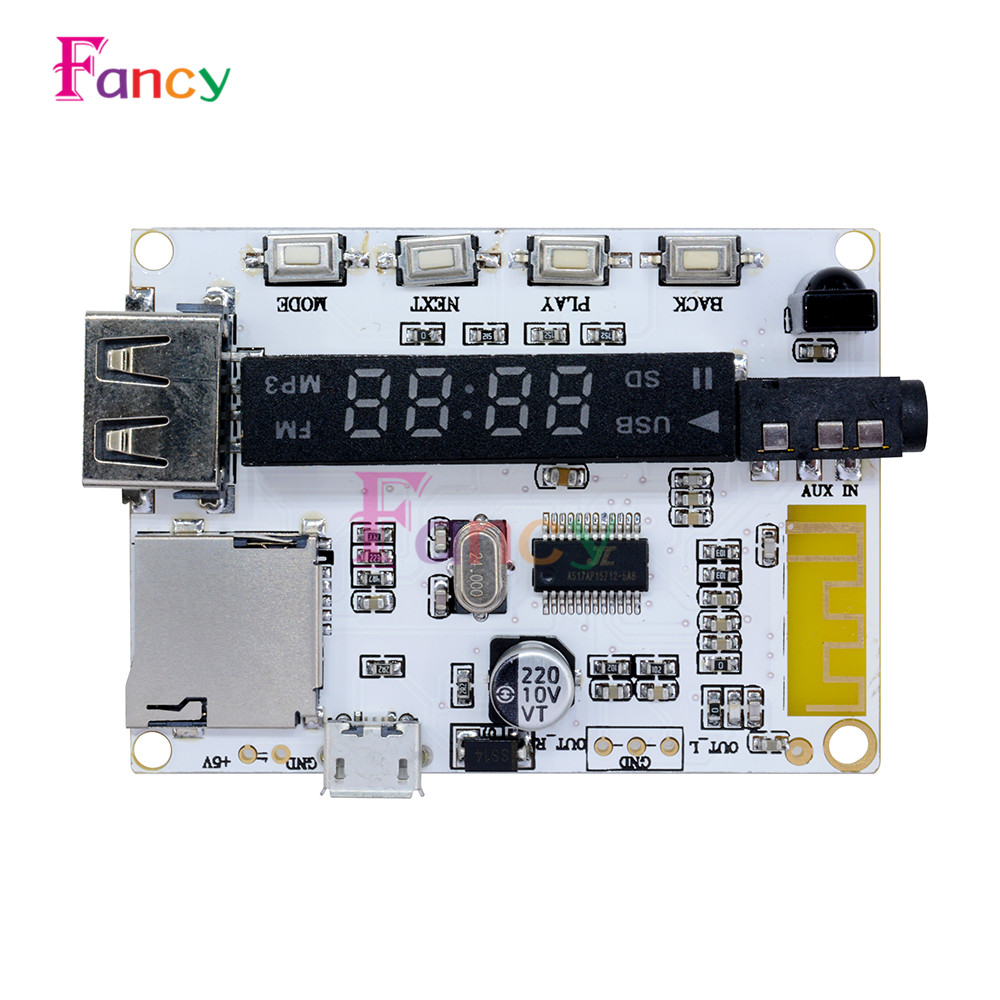

    Does anybody know the schematic and software for this board?

    http://s.aliexpress.com/vYfIzEnq?fromSns=Gmail

    Thanks
  • stj
    Great Sage 齊天大聖
    • Dec 2009
    • 30913
    • Albion

    #2
    Re: Schematic and software?

    um - get a datasheet for the chip - it looks like it only has one!
    thanks for the link - gotta order one now!!!!

    Comment

    • bianchi77
      Badcaps Legend
      • Jun 2016
      • 1121
      • Australia

      #3
      Re: Schematic and software?

      Originally posted by stj
      um - get a datasheet for the chip - it looks like it only has one!
      thanks for the link - gotta order one now!!!!
      There is no software on it?

      Comment

      • desert-rat
        Badcaps Legend
        • Mar 2014
        • 4103
        • USA

        #4
        Re: Schematic and software?

        The board is part of a car radio , if you can find out what radio its part of you might get a sec . Sec.s are hard to find tho . Today its not like the good old days when you could get a Sams photo fact folder for just about any thing made .

        Comment

        • R_J
          Badcaps Legend
          • Jun 2012
          • 9514
          • Canada

          #5
          Re: Schematic and software?

          looks like all you need is +5 volts and an external audio amp. It has built in fm receiver. It looks like you need to hard wire the L & R output. I can't see any need for any software
          Last edited by R_J; 04-23-2018, 11:37 AM.

          Comment

          • bianchi77
            Badcaps Legend
            • Jun 2016
            • 1121
            • Australia

            #6
            Re: Schematic and software?

            Originally posted by R_J
            looks like all you need is +5 volts and an external audio amp. It has built in fm receiver. It looks like you need to hard wire the L & R output. I can't see any need for any software
            Are you sure I don't need a software ? What chip is it ?
            The datasheet will tell more..

            Comment

            • R_J
              Badcaps Legend
              • Jun 2012
              • 9514
              • Canada

              #7
              Re: Schematic and software?

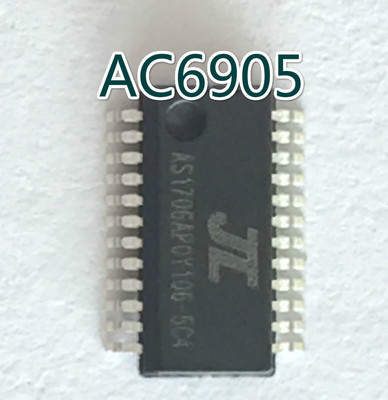

              Software to do what? its just a mp3 player (without amp) that also happens to have a built in fm tuner, it is very likely a custom chip. The number on it looks like AS17AP15712-5AB
              maker could be Shenzhen Ieyong Technology Co., Ltd
              There are similar items with different mounting etc. just google images "diymore bluetooth fm mp3"
              like this: https://www.aliexpress.com/item/1Set...671989622.html
              Also listed as AC6905 (AS1706APOY106-5C4) more info here https://detail.1688.com/offer/555291558426.html
              Attached Files
              Last edited by R_J; 04-23-2018, 10:27 PM.

              Comment

              • bianchi77
                Badcaps Legend
                • Jun 2016
                • 1121
                • Australia

                #8
                Re: Schematic and software?

                Originally posted by stj
                um - get a datasheet for the chip - it looks like it only has one!
                thanks for the link - gotta order one now!!!!
                Good enjoy it
                Share with me, how does it work ?

                Comment

                • bianchi77
                  Badcaps Legend
                  • Jun 2016
                  • 1121
                  • Australia

                  #9
                  Re: Schematic and software?

                  Originally posted by R_J
                  Software to do what? its just a mp3 player (without amp) that also happens to have a built in fm tuner, it is very likely a custom chip. The number on it looks like AS17AP15712-5AB
                  maker could be Shenzhen Ieyong Technology Co., Ltd
                  There are similar items with different mounting etc. just google images "diymore bluetooth fm mp3"
                  like this: https://www.aliexpress.com/item/1Set...671989622.html
                  Also listed as AC6905 (AS1706APOY106-5C4) more info here https://detail.1688.com/offer/555291558426.html
                  I can't find its datasheet, can you ?

                  Comment

                  • R_J
                    Badcaps Legend
                    • Jun 2012
                    • 9514
                    • Canada

                    #10
                    Re: Schematic and software?

                    Here try this
                    Attached Files
                    Last edited by R_J; 04-25-2018, 11:09 AM.

                    Comment

                    • bianchi77
                      Badcaps Legend
                      • Jun 2016
                      • 1121
                      • Australia

                      #11
                      Re: Schematic and software?

                      Originally posted by R_J
                      Here try this
                      Thanks for that, how about datasheet from CB6905 ?

                      Comment
