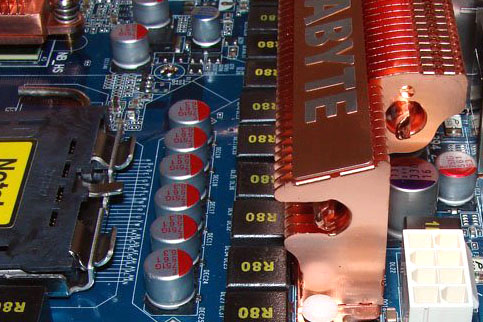

Gigabyte X48-DQ6
Attached Files
-
Gigabyte X48-DQ6 -
Re: motherboards with SMD capacitors
Willa, at first the SMD description deceived me: I really believed in the existence of a Ceramic-based motherboard!
Anyway, all Gigabytes with a D in their name employ polymer caps.
ZandraxHave an happy life. -
Re: motherboards with SMD capacitors

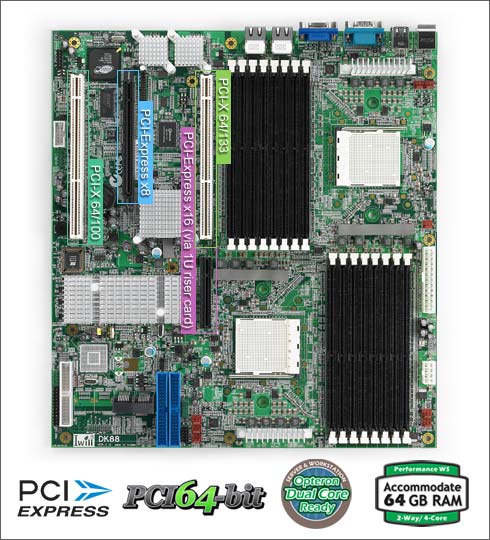

well i think iwill get the prize for the least can capacitors
still after reading xbitlabs review of abit ix38 and the incredibly toasty digital vrm, i think i will pass on digital vrm technology
dont you think its newsworthy seeing smd chip type caps on motherboards, it would be a different technique to recap although not a problem. still they can be damaged much easier than radial caps (detached from their bases) by careless users.Attached FilesComment
-
-
Re: motherboards with SMD capacitors
The review is not sounding to enthusiastic about this so called "digital VRM" whatever this marketing BS language thing does mean.
I think it simply is the expected shift to higher switching frequencies, where MLCC`s are all what is needed except of a few bulk caps.
Sure, a nice little board, nice bios and monitoring, but from my point fo view nothing that is THAT far better than may be any of the Gigabyte solid polymer boards with a lot of phases.Comment
-
Re: motherboards with SMD capacitors
I have to know what a Digital Vrm is before admitting is superior to any sturdy multiphase vrm available: I can't see the digital part of it except for a digitally controlled mosfet (does it exist?) and Google doesn't help me much.
Anyway Xbitlabs review points out this kind of vrms tends to run hotter than traditional ones: since heat is a big issue and the Atx location of vrm is a bad cooled corner (at P2 times vrms were surely cooler than actual ones), I think this is a bad cocktail that will show its side effects in future.
Thanks for posting the real question: SMD are machine soldered components. I think there can be some issues if weldings are precise and tiny enough such as chip ones, because this requires a very sharp soldering pen and good handcraft.
ZandraxHave an happy life.Comment
-
Re: motherboards with SMD capacitors
Gateway had a board they used in their Slot A Athlon Boxen.. It didn't have any electrolytics at all.. I had one at one time.. it was a decent board, but no overclocking or anything like that..
http://support.gateway.com/s/MOTHERB...00063500.shtmlComment
-
