    External Antenna for Edimax BR-6258n

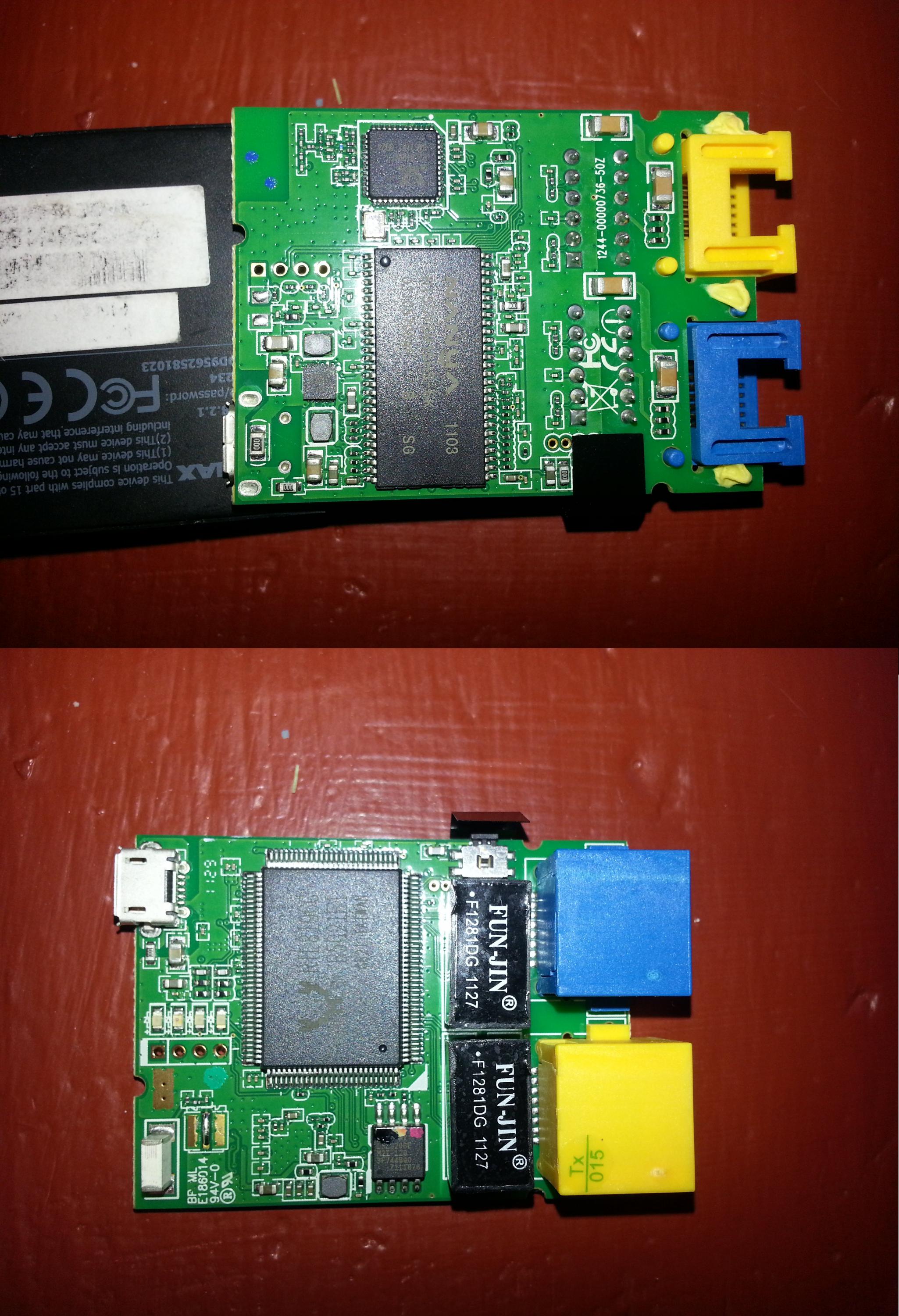

    I'd like to add a RP-SMA socket onto this nano-router, but I'm having trouble identifying any antenna contacts. My best guess is that it's the pad next to the four serial contacts, but I'm not sure nor do I really know how to check (vmm and then touch a wire to see signal change?).



    Any ideas would be greatly appreciated. Thanks.
    Attached Files
    Last edited by ratdude747; 04-02-2013, 08:36 PM. Reason: Converted Offsite image
    Tags: None
    • ant3202
      Badcaps Veteran
      • Jun 2006
      • 274
      • Singapore
      #2
      Re: External Antenna for Edimax BR-6258n

      could be the most top metal on the 2nd pic of FUN-JIN

      but need to verify...

        Comment

        • kc8adu
          Super Moderator
          • Nov 2003
          • 8832
          • U.S.A!
          #3
          Re: External Antenna for Edimax BR-6258n

          the funjins are transformers.
          i dont see a radio section anywhere.unless its the silver part that looks like a clock osc.
          too much glare.

            Comment

            • Jack Crow
              It's a CLASOB!
              • May 2008
              • 823
              • USA
              #4
              Re: External Antenna for Edimax BR-6258n

              All,
              Im with KC8ADU on this.
              I don't see any RF goodies.
              Can you supply a photo of the bottom of the board?

              Very often an antenna is 'etched' into the circuit board and can't be modified by normal humans.

              Microwave projects are not the best thing for someone new at this.

              Jack Crow
              "You are, what you do, when it counts"
              The Masso

              "Gravity, the quickest way down"
              Mayor John Almafi

              "You ever drop an egg, and on the floor you see it break?
              You go and get a mop so you can clean up your mistake.
              But did you ever stop to ponder why we know it's true?
              If you drop a broken egg you will not get an egg that's new?"

              MC Hawking

                Comment

                • ratdude747
                  Black Sheep
                  • Nov 2008
                  • 17136
                  • USA
                  #5
                  Re: External Antenna for Edimax BR-6258n

                  Fixed the offsite image issue. In the future, please attach your images first, and if you want your image inline, use the attachment's address. It speeds up page loading and ensures the image is never a broken link.
                  sigpic

                  (Insert witty quote here)

                    Comment
